Heat-Equation-Simulation
C++heat-equationpartial-differential-equation(PDE)sdl2
Heat-Equation-Simulation
Overview
This project simulates heat diffusion through materials using the heat equation, a fundamental partial differential equation (PDE) in physics. The simulator supports both 1D (bar) and 2D (plate) scenarios with real-time visualization of temperature distribution across four different materials simultaneously.
Mathematical Foundation
The Heat Equation
The heat equation models temperature distribution over time:
Where:
- u(t,x): Temperature [K] at time t and position x
- α = λ/(ρc): Thermal diffusivity [m²/s]
- λ: Thermal conductivity [W/(m·K)]
- ρ: Density [kg/m³]
- c: Specific heat capacity [J/(kg·K)]
- F: Heat source [W/m³]
Material Properties
The following table contains the values in international units for the materials considered in this project:
| Material | (W/(m·K)) | (kg/m³) | (J/(kg·K)) |
|---|---|---|---|
| Copper | 389 | 8940 | 380 |
| Iron | 80.2 | 7874 | 440 |
| Glass | 1.2 | 2530 | 840 |
| Polystyrene | 0.1 | 1040 | 1200 |
Boundary Conditions
- Neumann (x=0, y=0): ∂u/∂n = 0 (insulated boundary)
- Dirichlet (x=L, y=L): u = u₀ (fixed temperature)
Project Objectives
The aim of this project is to implement this simulation in C++ using the finite difference method for two distinct scenarios, namely a thin bar and a thin plate, each with specific boundary conditions in the implicit case, and create an animation of the temperature solution over time with the SDL library.
Key Features:
- Unconditionally stable implicit scheme (Backward Euler)
- 1D Bar Simulation: Linear heat diffusion with 2 heat sources
- 2D Plate Simulation: Radial heat diffusion with 4 corner sources
- Real-time visualization at 60 FPS using SDL2
- Simultaneous 4-material comparison in 2×2 grid mode
- Complete Doxygen documentation with UML class diagram
Numerical Methods
1D Case: Implicit Finite Differences + Thomas Algorithm
In this case, we're working with an infinitely thin bar () of length . For the bar: Neumann condition at and Dirichlet condition at .
Mathematical preliminaries
We have the following equation with its boundary and initial conditions:
Discretization
Temporal discretization:
Spatial discretization:
Implicit Scheme (Backward Euler)
The backward Euler method discretizes the heat equation as:
where r = α·Δt/Δx² is the diffusion number.
The heat source varies along the bar and is defined as:
Algorithm and Solution
We use the Tridiagonal Matrix Algorithm, also known as TDMA (TriDiagonal Matrix Algorithm), which is a direct and efficient method for solving systems of linear tridiagonal equations with an algorithmic complexity of .
Thomas Algorithm (TDMA)
For a tridiagonal system of form:
Forward sweep:
Back substitution:

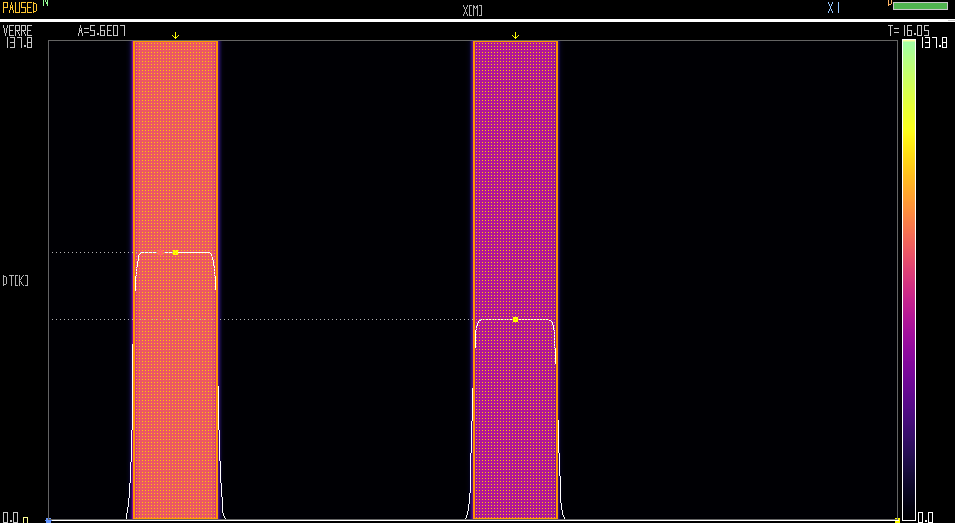

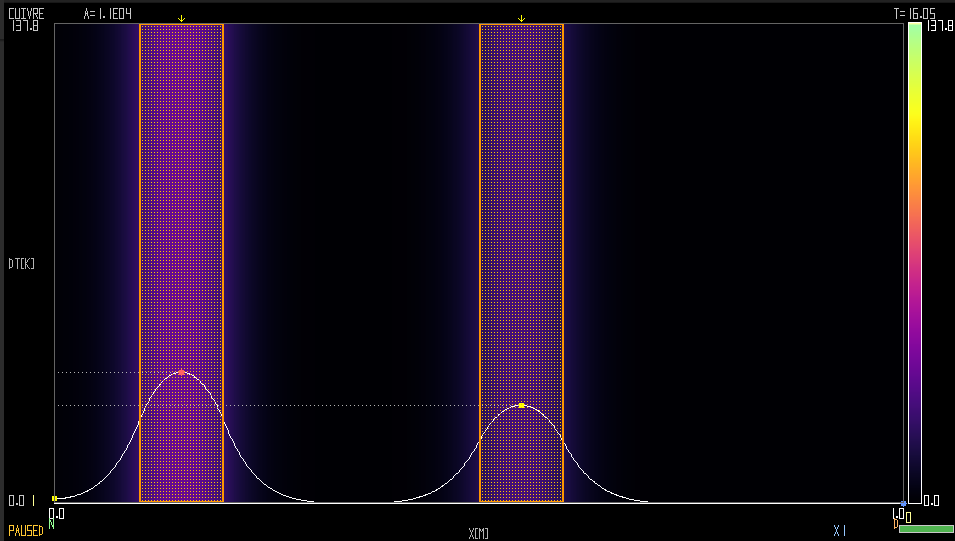

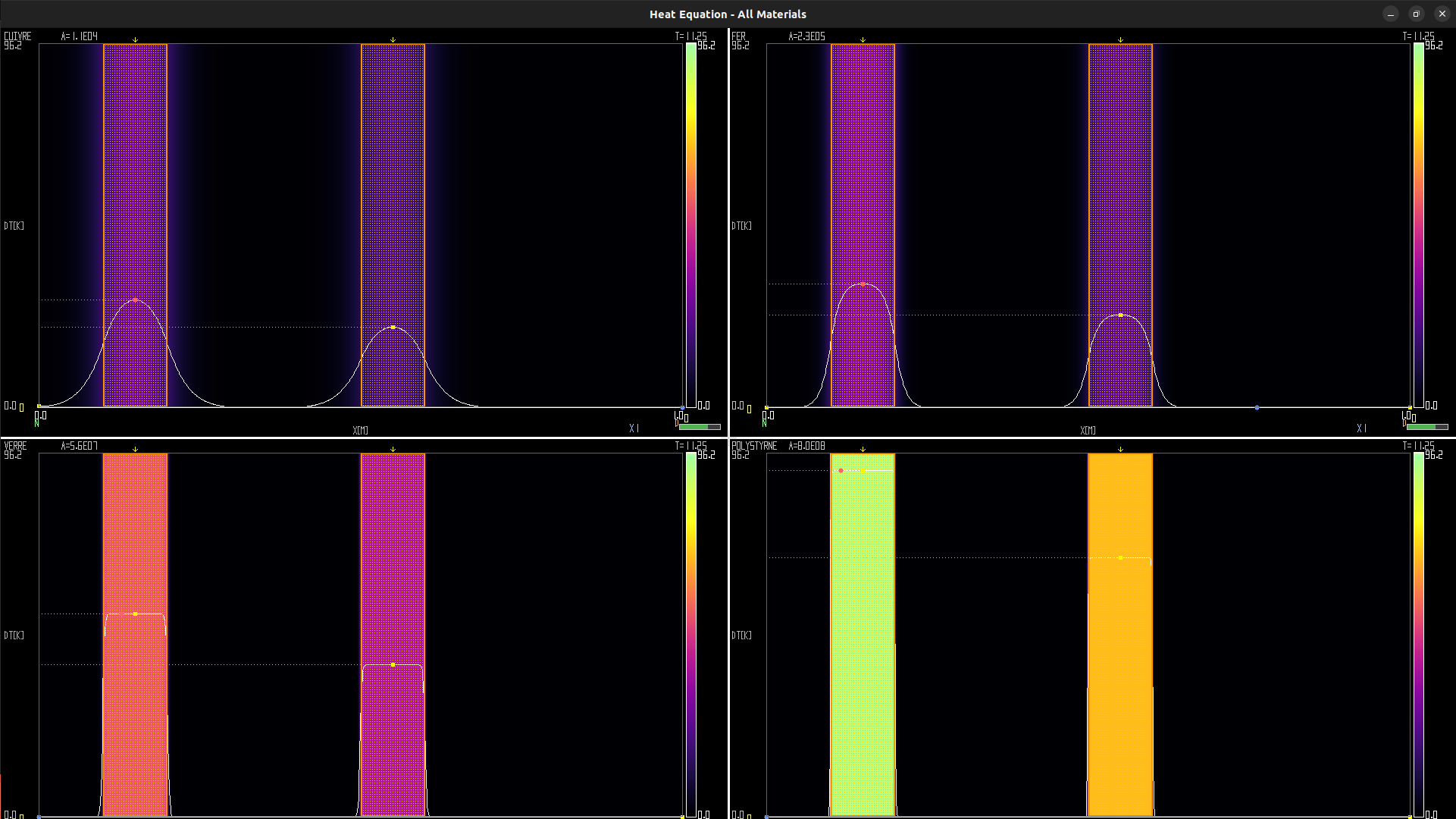

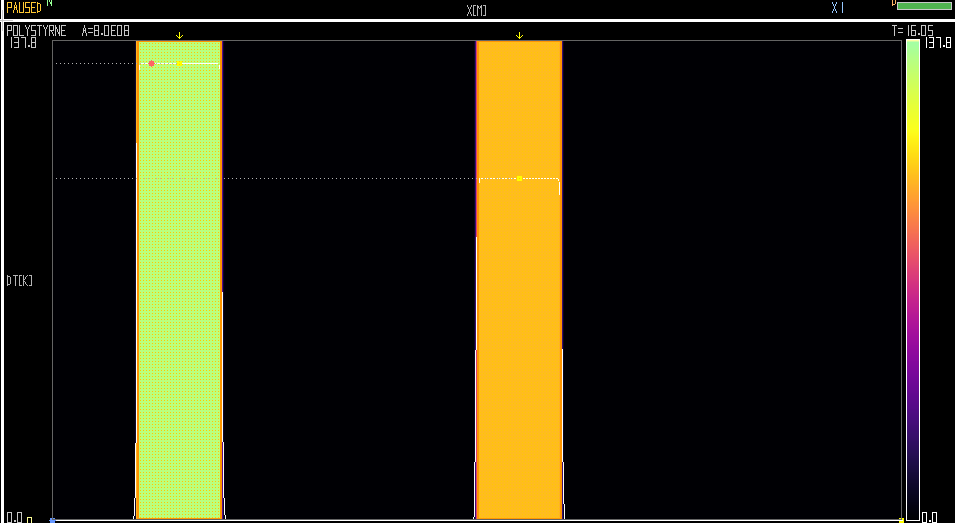

1D simulation results
| Copper | Glass |
|---|---|
 |  |
| Iron | Polystyrene |
|---|---|
 |  |
2D Case: 5-Point Stencil + Gauss-Seidel Iteration
In this case, we're working in two-dimensional space and our material is a square plate with side . For the plate: Neumann condition in and , Dirichlet condition in and .
Mathematical preliminaries
We have the following equation with its boundary and initial conditions:
Discretized Form
Using a 5-point stencil, each grid point depends only on its 4 neighbors:
The heat source is distributed symmetrically over four rectangular regions at the corners of the plate:
Gauss-Seidel Method
Update formula:
Convergence criterion:
Typically converges in less than 20 iterations for the heat equation.
Advantages of the Gauss–Seidel Method
- Memory efficiency: No need to store the full matrix
- Ease of implementation: Local update of each grid point
- Efficiency: Fast convergence for systems arising from the discretization of the heat equation
- Flexibility: Easy to adapt to different boundary conditions

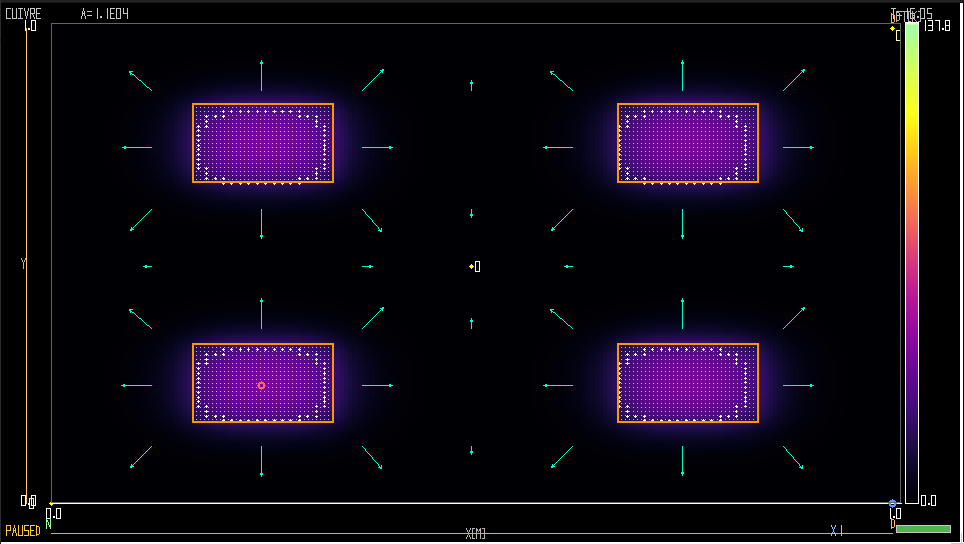

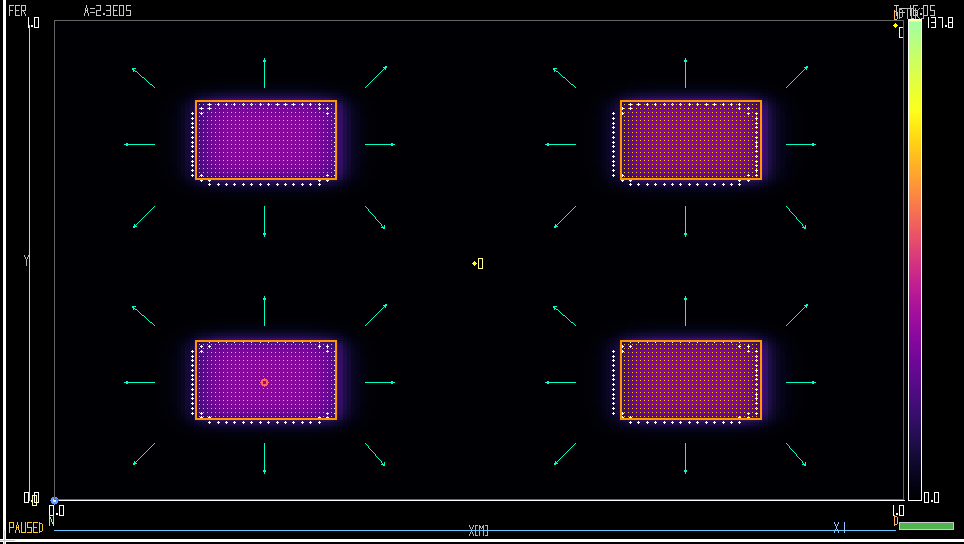

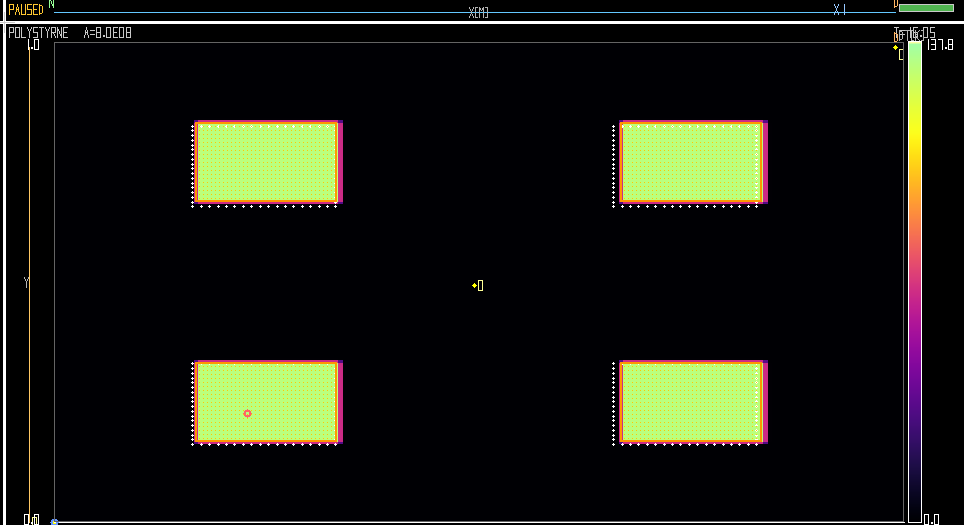

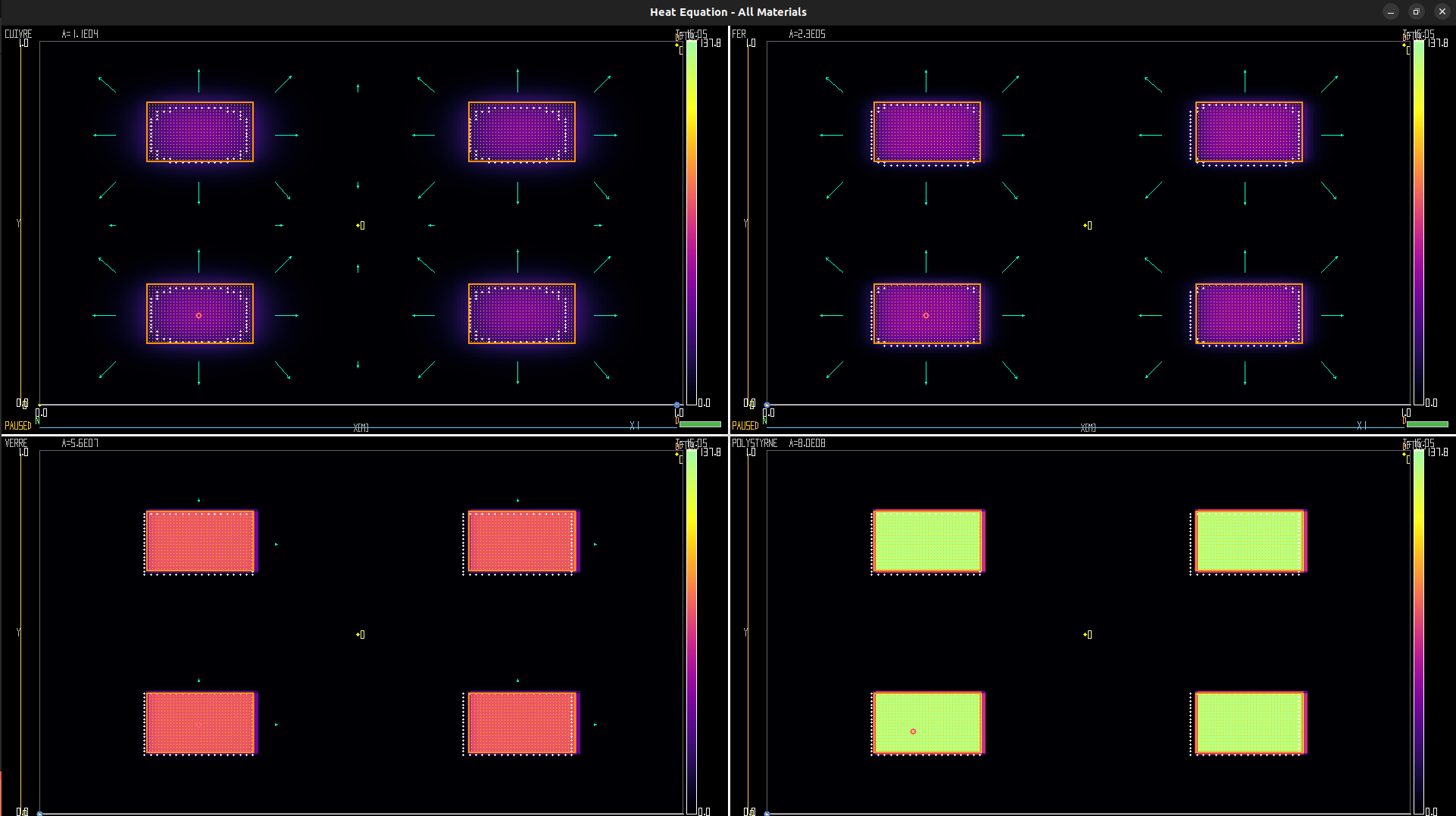

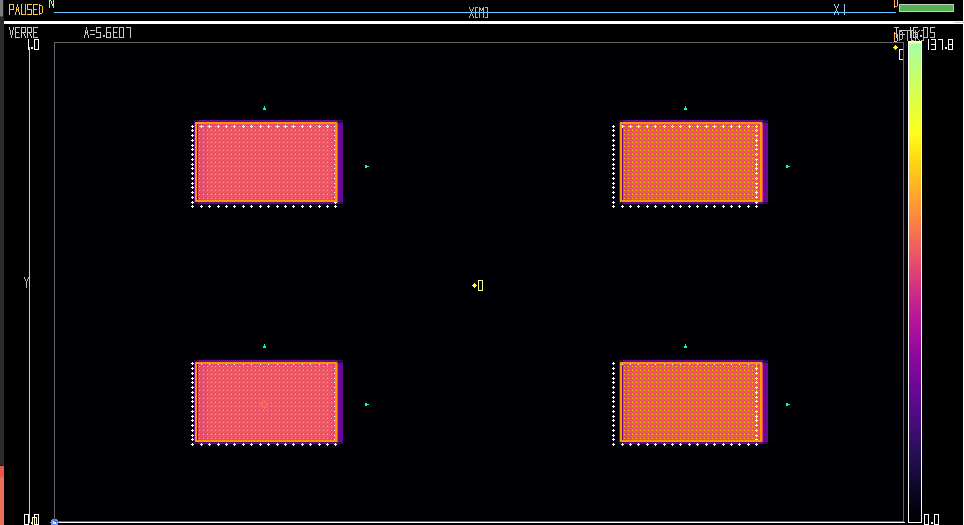

2D simulation results
| Copper | Glass |
|---|---|
 |  |
| Iron | Polystyrene |
|---|---|
 |  |
Code implementation(C++)
Project Structure
This section describes the internal organization of the project and how the heat equation simulation features are implemented in C++ using a modular design.
heat-equation-simulator/
├── heat_equation_solver.hpp/cpp # Numerical solvers (1D/2D)
├── material.hpp # Material properties
├── sdl_core.hpp/cpp # SDL initialization
├── sdl_window.hpp/cpp # Window management
├── sdl_heatmap.hpp/cpp # Visualization engine
├── sdl_app.hpp/cpp # Application controller
├── main.cpp # Entry point & menu
├── Doxyfile # Documentation config
├── uml_diagram.plantuml # Class diagram source
├── rapport_PAP.pdf # Report detail about the project
└── README.md # This file
Project Repository
You can access the complete source code and all project files and UML class diagram and documentation on GitHub by just click link below:
Heat equation solver (1D & 2D) module
heat_equation_solver.hpp
/**
* @file heat_equation_solver.hpp
* @brief 1D and 2D heat equation solvers using implicit finite differences.
*
* This module provides numerical solvers for the heat equation:
* @f[
* \frac{\partial u}{\partial t} = \alpha \nabla^2 u + \frac{F}{\rho c}
* @f]
*
* where:
* - u(x,t) is the temperature [K]
* - α = λ / (ρc) is the thermal diffusivity [m²/s]
* - λ is the thermal conductivity [W/(m·K)]
* - ρ is the density [kg/m³]
* - c is the specific heat capacity [J/(kg·K)]
* - F is a volumetric heat source [W/m³]
*
* Numerical methods:
* - 1D: Backward Euler implicit scheme solved with Thomas algorithm
* - 2D: Backward Euler implicit scheme solved with Gauss–Seidel iterations
*
* Boundary conditions:
* - Neumann (zero flux) on left/bottom boundaries
* - Dirichlet (fixed temperature) on right/top boundaries
*/
#ifndef HEAT_EQUATION_SOLVER_HPP
#define HEAT_EQUATION_SOLVER_HPP
#include "material.hpp"
#include <vector>
namespace ensiie {
/**
* @class HeatEquationSolver1D
* @brief Implicit finite difference solver for the 1D heat equation.
*
* Solves the heat equation on the domain x ∈ [0, L] using a backward
* Euler time discretization and centered finite differences in space.
*
* The resulting tridiagonal linear system is solved using the Thomas
* algorithm with O(n) complexity.
*
* Boundary conditions:
* - Neumann condition (∂u/∂x = 0) at x = 0
* - Dirichlet condition (u = u₀) at x = L
*/
class HeatEquationSolver1D {
private:
Material mat_; /**< Material properties (λ, ρ, c) */
double L_; /**< Length of the 1D domain */
double tmax_; /**< Maximum simulation time */
double dx_; /**< Spatial discretization step */
double dt_; /**< Time discretization step */
double u0_kelvin_; /**< Initial temperature (Kelvin) */
double t_; /**< Current simulation time */
int n_; /**< Number of grid points */
std::vector<double> u_; /**< Temperature field */
std::vector<double> F_; /**< Heat source term */
/**
* @brief Initialize the spatial heat source.
* @param f Source amplitude.
*/
void init_source(double f);
/**
* @brief Solve a tridiagonal linear system using the Thomas algorithm.
*
* @param a Sub-diagonal coefficients
* @param b Main diagonal coefficients
* @param c Super-diagonal coefficients
* @param d Right-hand side vector
* @param x Solution vector
*/
void solve_tridiagonal(
const std::vector<double>& a,
const std::vector<double>& b,
const std::vector<double>& c,
std::vector<double>& d,
std::vector<double>& x
);
public:
/**
* @brief Construct a 1D heat equation solver.
*
* @param mat Material properties
* @param L Length of the domain
* @param tmax Maximum simulation time
* @param u0 Initial temperature (°C)
* @param f Heat source amplitude
* @param n Number of spatial grid points
*/
HeatEquationSolver1D(
const Material& mat,
double L,
double tmax,
double u0,
double f,
int n
);
/**
* @brief Advance the solution by one time step.
* @return false if the final time is reached
*/
bool step();
/**
* @brief Get the current temperature field.
*/
const std::vector<double>& get_temperature() const { return u_; }
/**
* @brief Get the current simulation time.
*/
double get_time() const { return t_; }
/**
* @brief Get the number of grid points.
*/
int get_n() const { return n_; }
/**
* @brief Reset the solver to the initial state (t=0, u=u0)
*/
void reset();
};
/**
* @class HeatEquationSolver2D
* @brief Implicit finite difference solver for the 2D heat equation.
*
* Solves the heat equation on a square domain [0, L]² using a five-point
* stencil and a backward Euler time discretization.
*
* The implicit system is solved using Gauss–Seidel iterations.
*
* Boundary conditions:
* - Neumann condition on left and bottom boundaries
* - Dirichlet condition on right and top boundaries
*/
class HeatEquationSolver2D {
private:
Material mat_; /**< Material properties */
double L_; /**< Domain size */
double tmax_; /**< Maximum simulation time */
double dx_; /**< Spatial step */
double dt_; /**< Time step */
double u0_kelvin_; /**< Initial temperature in Kelvin */
double t_; /**< Current time */
int n_; /**< Grid points per dimension */
std::vector<double> u_; /**< Temperature field (row-major) */
std::vector<double> F_; /**< Heat source */
/**
* @brief Convert 2D indices to 1D index.
*/
int idx(int i, int j) const { return j * n_ + i; }
/**
* @brief Initialize the 2D heat source.
*/
void init_source(double f);
public:
/**
* @brief Construct a 2D heat equation solver.
*/
HeatEquationSolver2D(
const Material& mat,
double L,
double tmax,
double u0,
double f,
int n
);
/**
* @brief Advance one step using Gauss-Seidel iteration
*/
bool step();
/**
* @brief Get temperature at grid point (i,j).
*/
double get_temperature(int i, int j) const { return u_[idx(i, j)]; }
/**
* @brief Get the full temperature field as a 2D array.
*/
std::vector<std::vector<double>> get_temperature_2d() const;
double get_time() const { return t_; }
double get_tmax() const { return tmax_; }
int get_n() const { return n_; }
/**
* @brief Reset the solver to the initial state.
*/
void reset();
};
} // namespace ensiie
#endifheat_equation_solver.cpp
/**
* @file heat_equation_solver.cpp
* @brief Implementation of implicit heat equation solvers (1D and 2D).
*/
#include "heat_equation_solver.hpp"
#include <cmath>
#include <algorithm>
/// Conversion from Celsius to Kelvin
constexpr double KELVIN_OFFSET = 273.15;
namespace ensiie {
// =============================================================================
// 1D SOLVER IMPLEMENTATION
// =============================================================================
HeatEquationSolver1D::HeatEquationSolver1D(
const Material& mat,
double L,
double tmax,
double u0,
double f,
int n
)
: mat_(mat)
, L_(L)
, tmax_(tmax)
, dx_(L / (n - 1))
, dt_(tmax / 1000.0)
, u0_kelvin_(u0 + KELVIN_OFFSET)
, t_(0.0)
, n_(n)
, u_(n, u0_kelvin_)
, F_(n, 0.0)
{
init_source(f);
}
void HeatEquationSolver1D::init_source(double f) {
// Source regions: [L/10, 2L/10] and [5L/10, 6L/10]
// F(x) = tmax * f^2 according to PDF
double f1 = tmax_ * f * f;
double f2 = 0.75 * tmax_ * f * f;
// Scale factor to make heat propagation visible
double scale = 100.0; // Amplification factor for visualization
for (int i = 0; i < n_; i++) {
double x = i * dx_;
if (x >= L_ / 10.0 && x <= 2.0 * L_ / 10.0) {
F_[i] = f1 * scale;
} else if (x >= 5.0 * L_ / 10.0 && x <= 6.0 * L_ / 10.0) {
F_[i] = f2 * scale;
} else {
F_[i] = 0.0;
}
}
}
bool HeatEquationSolver1D::step() {
if (t_ >= tmax_) return false;
// Implicit scheme coefficients
double alpha = mat_.alpha();
double r = alpha * dt_ / (dx_ * dx_);
double coef = dt_ / (mat_.rho * mat_.c);
std::vector<double> a(n_, -r);
std::vector<double> b(n_, 1.0 + 2.0 * r);
std::vector<double> c(n_, -r);
std::vector<double> d(n_);
// RHS
for (int i = 0; i < n_; i++) {
d[i] = u_[i] + coef * F_[i];
}
// Neumann boundary condition at x = 0
b[0] = 1.0 + r;
c[0] = -r;
// Dirichlet boundary condition at x = L
b[n_ - 1] = 1.0;
a[n_ - 1] = 0.0;
c[n_ - 1] = 0.0;
d[n_ - 1] = u0_kelvin_;
std::vector<double> u_new(n_);
solve_tridiagonal(a, b, c, d, u_new);
u_ = u_new;
t_ += dt_;
return true;
}
void HeatEquationSolver1D::solve_tridiagonal(
const std::vector<double>& a,
const std::vector<double>& b,
const std::vector<double>& c,
std::vector<double>& d,
std::vector<double>& x
)
{
// Thomas algorithm (TDMA)
int n = static_cast<int>(b.size());
std::vector<double> c_prime(n);
std::vector<double> d_prime(n);
// Forward elimination
c_prime[0] = c[0] / b[0];
d_prime[0] = d[0] / b[0];
for (int i = 1; i < n; i++) {
double denom = b[i] - a[i] * c_prime[i - 1];
c_prime[i] = c[i] / denom;
d_prime[i] = (d[i] - a[i] * d_prime[i - 1]) / denom;
}
// Back substitution
x[n - 1] = d_prime[n - 1];
for (int i = n - 2; i >= 0; --i) {
x[i] = d_prime[i] - c_prime[i] * x[i + 1];
}
}
void HeatEquationSolver1D::reset() {
t_ = 0.0;
std::fill(u_.begin(), u_.end(), u0_kelvin_);
}
// =============================================================================
// 2D SOLVER IMPLEMENTATION
// =============================================================================
HeatEquationSolver2D::HeatEquationSolver2D(
const Material& mat,
double L,
double tmax,
double u0,
double f,
int n
)
: mat_(mat)
, L_(L)
, tmax_(tmax)
, dx_(L / (n - 1))
, dt_(tmax / 1000.0)
, u0_kelvin_(u0 + KELVIN_OFFSET)
, t_(0.0)
, n_(n)
, u_(n * n, u0_kelvin_)
, F_(n * n, 0.0)
{
init_source(f);
}
void HeatEquationSolver2D::init_source(double f) {
// Four symmetric sources at corners
// F(x,y) = tmax * f^2 according to PDF
double f_val = tmax_ * f * f;
// Scale factor to make heat propagation visible
double scale = 100.0; // Amplification factor for visualization
for (int j = 0; j < n_; j++) {
for (int i = 0; i < n_; i++) {
double x = i * dx_;
double y = j * dx_;
bool in_source = false;
// Bottom-left
if (x >= L_/6.0 && x <= 2.0*L_/6.0 && y >= L_/6.0 && y <= 2.0*L_/6.0)
in_source = true;
// Bottom-right
if (x >= 4.0*L_/6.0 && x <= 5.0*L_/6.0 && y >= L_/6.0 && y <= 2.0*L_/6.0)
in_source = true;
// Top-left
if (x >= L_/6.0 && x <= 2.0*L_/6.0 && y >= 4.0*L_/6.0 && y <= 5.0*L_/6.0)
in_source = true;
// Top-right
if (x >= 4.0*L_/6.0 && x <= 5.0*L_/6.0 && y >= 4.0*L_/6.0 && y <= 5.0*L_/6.0)
in_source = true;
F_[idx(i, j)] = in_source ? (f_val * scale) : 0.0;
}
}
}
bool HeatEquationSolver2D::step() {
if (t_ >= tmax_) return false;
// Implicit scheme with 5-point stencil
double alpha = mat_.alpha();
double r = alpha * dt_ / (dx_ * dx_);
double src_coef = dt_ / (mat_.rho * mat_.c);
std::vector<double> u_new = u_;
// Gauss-Seidel parameters
const int max_iter = 100;
const double tol = 1e-6;
for (int iter = 0; iter < max_iter; iter++) {
double max_diff = 0.0;
for (int j = 0; j < n_; ++j) {
for (int i = 0; i < n_; ++i) {
// Dirichlet BC at right and top edges
if (i == n_ - 1 || j == n_ - 1) {
u_new[idx(i, j)] = u0_kelvin_;
continue;
}
double old_val = u_new[idx(i, j)];
// Neighbors with Neumann BC (mirror at i=0, j=0)
double u_left = (i > 0) ? u_new[idx(i-1, j)] : u_new[idx(1, j)];
double u_right = u_new[idx(i+1, j)];
double u_down = (j > 0) ? u_new[idx(i, j-1)] : u_new[idx(i, 1)];
double u_up = u_new[idx(i, j+1)];
double rhs = u_[idx(i, j)] + src_coef * F_[idx(i, j)];
u_new[idx(i, j)] = (rhs + r * (u_left + u_right + u_down + u_up)) / (1.0 + 4.0 * r);
max_diff = std::max(max_diff, std::abs(u_new[idx(i, j)] - old_val));
}
}
if (max_diff < tol) break;
}
u_ = u_new;
t_ += dt_;
return true;
}
std::vector<std::vector<double>> HeatEquationSolver2D::get_temperature_2d() const {
std::vector<std::vector<double>> result(n_, std::vector<double>(n_));
for (int j = 0; j < n_; j++) {
for (int i = 0; i < n_; i++) {
result[j][i] = u_[idx(i, j)];
}
}
return result;
}
void HeatEquationSolver2D::reset() {
t_ = 0.0;
std::fill(u_.begin(), u_.end(), u0_kelvin_);
}
} // namespace ensiiematerial.hpp
/**
* @file material.hpp
* @brief Definition of physical material properties for heat simulations.
*/
#ifndef MATERIAL_HPP
#define MATERIAL_HPP
#include <string>
namespace ensiie {
/**
* @struct Material
* @brief Physical properties of a material used in heat simulations.
*/
struct Material {
std::string name; ///< Material name
double lambda; ///< Thermal conductivity W/(mK)
double rho; ///< Density kg/m^{3}
double c; ///< Specific heat J/(kgK)
/**
* @brief Compute thermal diffusivity.
* @return Thermal diffusivity α = λ / (ρc) in m²/s
*/
double alpha() const { return lambda / (rho * c); }
};
/**
* @namespace Materials
* @brief Predefined common materials.
*/
namespace Materials {
const Material COPPER = {"Cuivre", 389.0, 8940.0, 380.0};
const Material IRON = {"Fer", 80.2, 7874.0, 440.0};
const Material GLASS = {"Verre", 1.2, 2530.0, 840.0};
const Material POLYSTYRENE = {"Polystyrène", 0.1, 1040.0, 1200.0};
}
} // namespace ensiie
#endifSDL Initialization Module
sdl_core.hpp
/**
* @file sdl_core.hpp
* @brief SDL2 initialization and event handling wrapper.
*
* This module provides a minimal RAII-style wrapper around SDL2
* initialization, shutdown, and event polling.
*/
#ifndef SDL_CORE_HPP
#define SDL_CORE_HPP
#include <SDL.h>
#include <string>
#include <stdexcept>
namespace sdl {
/**
* @class SDLException
* @brief Exception thrown when an SDL error occurs
*/
class SDLException : public std::runtime_error {
public:
/**
* @brief Construct an SDL exception with SDL error message
* @param msg Custom error message
*/
explicit SDLException(const std::string& msg)
: std::runtime_error(msg + ": " + SDL_GetError()) {}
};
/**
* @class SDLCore
* @brief Static wrapper for SDL initialization and event handling
*/
class SDLCore {
private:
static bool initialized_; ///< SDL initialization state
public:
/**
* @brief Initialize SDL
* @param flag SDL initialization flags (default: SDL_INIT_VIDEO)
*/
static void init(Uint32 flag = SDL_INIT_VIDEO);
/**
* @brief Quit SDL properly
*/
static void quit();
/**
* @brief Poll SDL events and detect quit request
* @return true if user wants to quit
*/
static bool poll_quit();
/**
* @brief Delay execution
* @param ms Milliseconds to wait
*/
static void delay(Uint32 ms);
/**
* @brief Check if SDL is initialized
* @return true if initialized
*/
static bool is_initialized() { return initialized_; }
};
}
#endifsdl_core.cpp
/**
* @file sdl_core.cpp
* @brief Implementation of SDL2 core utilities.
*/
#include "sdl_core.hpp"
namespace sdl {
bool SDLCore::initialized_ = false;
void SDLCore::init(Uint32 flag) {
if (!initialized_) {
if (SDL_Init(flag) < 0) {
throw SDLException("SDL_Init failed");
}
initialized_ = true;
}
}
void SDLCore::quit() {
if (initialized_) {
SDL_Quit();
initialized_ = false;
}
}
bool SDLCore::poll_quit() {
SDL_Event event;
while (SDL_PollEvent(&event)) {
if (event.type == SDL_QUIT) return true;
if (event.type == SDL_KEYDOWN) {
if (event.key.keysym.sym == SDLK_ESCAPE) return true;
if (event.key.keysym.sym == SDLK_q) return true;
}
}
return false;
}
void SDLCore::delay(Uint32 ms) {
SDL_Delay(ms);
}
}SDL Window Management Module
sdl_window.hpp
/**
* @file sdl_window.hpp
* @brief SDL2 window and renderer wrapper
*/
#ifndef SDL_WINDOW_HPP
#define SDL_WINDOW_HPP
#include "SDL.h"
#include <string>
namespace sdl {
/**
* @class SDLWindow
* @brief Encapsulates an SDL window and renderer.
*
* This class manages the lifetime of an SDL_Window and SDL_Renderer.
* It provides helper methods for clearing, presenting, fullscreen
* toggling, and window title management.
*/
class SDLWindow {
private:
SDL_Window* window_; ///< SDL window handle
SDL_Renderer* renderer_; ///< SDL renderer handle
int width_; ///< Window width in pixels
int height_; ///< Window height in pixels
bool fullscreen_; ///< Fullscreen state
public:
/**
* @brief Construct an SDL window and renderer.
* @param title Window title
* @param width Window width in pixels
* @param height Window height in pixels
* @param fullscreen Whether to start in fullscreen mode
*/
SDLWindow(const std::string& title, int width, int height, bool fullscreen = false);
/**
* @brief Destroy the SDL window and renderer.
*/
~SDLWindow();
SDLWindow(const SDLWindow&) = delete;
SDLWindow& operator=(const SDLWindow&) = delete;
/**
* @brief Clear the window with a given color.
* @param r Red component (0–255)
* @param g Green component (0–255)
* @param b Blue component (0–255)
*/
void clear(Uint8 r = 0, Uint8 g = 0, Uint8 b = 0);
/**
* @brief Present the rendered frame on screen.
*/
void present();
/**
* @brief Change the window title.
* @param title New window title
*/
void set_title(const std::string& title);
/**
* @brief Toggle fullscreen mode.
*/
void toggle_fullscreen();
/**
* @brief Check if the window is in fullscreen mode.
*/
bool is_fullscreen() const { return fullscreen_; }
/**
* @brief Get the underlying SDL window.
*/
SDL_Window* get_window() const { return window_; }
/**
* @brief Get the SDL renderer.
*/
SDL_Renderer* get_renderer() const { return renderer_; }
/**
* @brief Get window width.
*/
int get_width() const { return width_; }
/**
* @brief Get window height.
*/
int get_height() const { return height_; }
};
}
#endifsdl_window.cpp
/**
* @file sdl_window.cpp
* @brief SDL2 window implementation
*/
#include "sdl_window.hpp"
#include "sdl_core.hpp"
namespace sdl {
SDLWindow::SDLWindow(const std::string& title, int width, int height, bool fullscreen)
: window_(nullptr)
, renderer_(nullptr)
, width_(width)
, height_(height)
, fullscreen_(fullscreen)
{
Uint32 flags = SDL_WINDOW_SHOWN;
// If width/height are 0, use maximized window
if (width == 0 || height == 0) {
flags |= SDL_WINDOW_MAXIMIZED | SDL_WINDOW_RESIZABLE;
// Get display bounds for initial size
SDL_DisplayMode dm;
SDL_GetCurrentDisplayMode(0, &dm);
width = dm.w;
height = dm.h;
}
window_ = SDL_CreateWindow(
title.c_str(),
SDL_WINDOWPOS_CENTERED,
SDL_WINDOWPOS_CENTERED,
width,
height,
flags
);
if (!window_) {
throw SDLException("SDL_CreateWindow failed");
}
if (fullscreen_) {
SDL_SetWindowFullscreen(window_, SDL_WINDOW_FULLSCREEN_DESKTOP);
}
// Get actual window size
SDL_GetWindowSize(window_, &width_, &height_);
renderer_ = SDL_CreateRenderer(
window_, -1,
SDL_RENDERER_ACCELERATED | SDL_RENDERER_PRESENTVSYNC
);
if (!renderer_) {
SDL_DestroyWindow(window_);
throw SDLException("SDL_CreateRenderer failed");
}
}
SDLWindow::~SDLWindow() {
if (renderer_) SDL_DestroyRenderer(renderer_);
if (window_) SDL_DestroyWindow(window_);
}
void SDLWindow::clear(Uint8 r, Uint8 g, Uint8 b) {
SDL_SetRenderDrawColor(renderer_, r, g, b, 255);
SDL_RenderClear(renderer_);
}
void SDLWindow::present() {
SDL_RenderPresent(renderer_);
}
void SDLWindow::set_title(const std::string& title) {
SDL_SetWindowTitle(window_, title.c_str());
}
void SDLWindow::toggle_fullscreen() {
fullscreen_ = !fullscreen_;
SDL_SetWindowFullscreen(window_, fullscreen_ ? SDL_WINDOW_FULLSCREEN : 0);
SDL_GetWindowSize(window_, &width_, &height_);
}
}SDL Visualization Engine Module
sdl_heatmap.hpp
/**
* @file sdl_heatmap.hpp
* @brief Temperature visualization using Inferno colormap
*/
#ifndef SDL_HEATMAP_HPP
#define SDL_HEATMAP_HPP
#include "sdl_window.hpp"
#include <vector>
#include <string>
namespace sdl {
/**
* @brief Runtime simulation metadata for display
*
* This structure contains all necessary information to display
* simulation status and material properties in the visualization.
*/
struct SimInfo {
std::string material_name; ///< Name of the material being simulated
double alpha; ///< Thermal diffusivity [m²/s]
double time; ///< Current simulation time [s]
double tmax; ///< Maximum simulation time [s]
double L; ///< Domain length [m]
double u0; ///< Boundary temperature [K]
int speed; ///< Simulation speed multiplier
bool paused; ///< Simulation pause state
};
/**
* @class SDLHeatmap
* @brief Fullscreen temperature visualization
*
* Uses Inferno colormap (perceptually uniform).
* 2D uses bilinear interpolation for smooth gradients.
*/
class SDLHeatmap {
private:
SDLWindow& win_; ///< Reference to SDL window
double t_min_; ///< Minimum temperature for colormap scaling [K]
double t_max_; ///< Maximum temperature for colormap scaling [K]
/**
* @brief Convert temperature to RGB color using Inferno colormap
* @param t Temperature value to convert [K]
* @param r Output red component (0-255)
* @param g Output green component (0-255)
* @param b Output blue component (0-255)
*/
void temp_to_rgb(double t, Uint8& r, Uint8& g, Uint8& b) const;
/**
* @brief Draw a numerical value at specified position
* @param rend SDL renderer
* @param x X coordinate in pixels
* @param y Y coordinate in pixels
* @param value Numerical value to display
*/
void draw_number(SDL_Renderer* rend, int x, int y, double value) const;
/**
* @brief Draw text string at specified position
* @param rend SDL renderer
* @param x X coordinate in pixels
* @param y Y coordinate in pixels
* @param text C-string to display
*/
void draw_text(SDL_Renderer* rend, int x, int y, const char* text) const;
/**
* @brief Draw vertical colorbar legend
* @param rend SDL renderer
* @param x X coordinate of top-left corner
* @param y Y coordinate of top-left corner
* @param w Width in pixels
* @param h Height in pixels
*/
void draw_colorbar(SDL_Renderer* rend, int x, int y, int w, int h) const;
/**
* @brief Draw information panel with simulation metadata
* @param rend SDL renderer
* @param info Simulation information to display
*/
void draw_info_panel(SDL_Renderer* rend, const SimInfo& info) const;
/**
* @brief Draw grid lines for spatial reference
* @param rend SDL renderer
* @param x0 Starting X coordinate
* @param y0 Starting Y coordinate
* @param w Grid width in pixels
* @param h Grid height in pixels
* @param nx Number of vertical grid lines
* @param ny Number of horizontal grid lines
*/
void draw_grid(SDL_Renderer* rend, int x0, int y0, int w, int h, int nx, int ny) const;
public:
/**
* @brief Construct heatmap visualizer
* @param win Reference to SDL window for rendering
* @param t_min Initial minimum temperature for scaling [K]
* @param t_max Initial maximum temperature for scaling [K]
*/
SDLHeatmap(SDLWindow& win, double t_min, double t_max);
/**
* @brief Manually set temperature range for colormap scaling
* @param t_min Minimum temperature [K]
* @param t_max Maximum temperature [K]
*/
void set_range(double t_min, double t_max);
/**
* @brief Automatically determine range from 1D temperature data
* @param temps Vector of temperature values [K]
*/
void auto_range(const std::vector<double>& temps);
/**
* @brief Automatically determine range from 2D temperature data
* @param temps 2D vector of temperature values [K]
*/
void auto_range_2d(const std::vector<std::vector<double>>& temps);
/**
* @brief Draw 1D temperature distribution in fullscreen mode
* @param temps Vector of temperature values [K]
* @param info Simulation metadata for display
*/
void draw_1d_fullscreen(const std::vector<double>& temps, const SimInfo& info);
/**
* @brief Draw 2D temperature distribution in fullscreen mode
* @param temps 2D grid of temperature values [K]
* @param info Simulation metadata for display
*/
void draw_2d_fullscreen(const std::vector<std::vector<double>>& temps, const SimInfo& info);
/**
* @brief Draw 1D temperature distribution in a grid cell (2x2 mode)
* @param temps Vector of temperature values [K]
* @param info Simulation metadata for display
* @param cell_x X coordinate of cell top-left corner
* @param cell_y Y coordinate of cell top-left corner
* @param cell_w Cell width in pixels
* @param cell_h Cell height in pixels
*/
void draw_1d_cell(const std::vector<double>& temps, const SimInfo& info,
int cell_x, int cell_y, int cell_w, int cell_h);
/**
* @brief Draw 2D temperature distribution in a grid cell (2x2 mode)
* @param temps 2D grid of temperature values [K]
* @param info Simulation metadata for display
* @param cell_x X coordinate of cell top-left corner
* @param cell_y Y coordinate of cell top-left corner
* @param cell_w Cell width in pixels
* @param cell_h Cell height in pixels
*/
void draw_2d_cell(const std::vector<std::vector<double>>& temps, const SimInfo& info,
int cell_x, int cell_y, int cell_w, int cell_h);
/**
* @brief Get current minimum temperature of colormap range
* @return Minimum temperature [K]
*/
double get_min() const { return t_min_; }
/**
* @brief Get current maximum temperature of colormap range
* @return Maximum temperature [K]
*/
double get_max() const { return t_max_; }
};
}
#endifsdl_heatmap.cpp
/**
* @file sdl_heatmap.cpp
* @brief Temperature visualization implementation
*/
#include "sdl_heatmap.hpp"
#include <algorithm>
#include <cmath>
namespace sdl {
// Helper: 7-segment digit rendering
static void draw_digit(SDL_Renderer* rend, int x, int y, int digit) {
static const bool segments[10][7] = {
{1,1,1,1,1,1,0}, // 0
{0,1,1,0,0,0,0}, // 1
{1,1,0,1,1,0,1}, // 2
{1,1,1,1,0,0,1}, // 3
{0,1,1,0,0,1,1}, // 4
{1,0,1,1,0,1,1}, // 5
{1,0,1,1,1,1,1}, // 6
{1,1,1,0,0,0,0}, // 7
{1,1,1,1,1,1,1}, // 8
{1,1,1,1,0,1,1} // 9
};
const int w = 4;
const int h = 5;
if (segments[digit][0]) SDL_RenderDrawLine(rend, x, y, x+w, y);
if (segments[digit][1]) SDL_RenderDrawLine(rend, x+w, y, x+w, y+h);
if (segments[digit][2]) SDL_RenderDrawLine(rend, x+w, y+h, x+w, y+2*h);
if (segments[digit][3]) SDL_RenderDrawLine(rend, x, y+2*h, x+w, y+2*h);
if (segments[digit][4]) SDL_RenderDrawLine(rend, x, y+h, x, y+2*h);
if (segments[digit][5]) SDL_RenderDrawLine(rend, x, y, x, y+h);
if (segments[digit][6]) SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
}
// Helper: Letter rendering upper case
static void draw_letter(SDL_Renderer* rend, int x, int y, char c) {
const int w = 4;
const int h = 10;
switch (c) {
case 'A':
SDL_RenderDrawLine(rend, x, y+h, x+w/2, y);
SDL_RenderDrawLine(rend, x+w/2, y, x+w, y+h);
SDL_RenderDrawLine(rend, x+1, y+h/2, x+w-1, y+h/2);
break;
case 'C':
SDL_RenderDrawLine(rend, x+w, y, x, y);
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
break;
case 'D':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y, x+w-1, y+2);
SDL_RenderDrawLine(rend, x+w-1, y+2, x+w-1, y+h-2);
SDL_RenderDrawLine(rend, x+w-1, y+h-2, x, y+h);
break;
case 'E':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x, y+h/2, x+w-1, y+h/2);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
break;
case 'F':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x, y+h/2, x+w-1, y+h/2);
break;
case 'G':
SDL_RenderDrawLine(rend, x+w, y+1, x+1, y);
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y+h, x+w, y+h/2);
SDL_RenderDrawLine(rend, x+w, y+h/2, x+w/2, y+h/2);
break;
case 'I':
SDL_RenderDrawLine(rend, x+w/2, y, x+w/2, y+h);
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
break;
case 'K':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x+w, y, x, y+h/2);
SDL_RenderDrawLine(rend, x, y+h/2, x+w, y+h);
break;
case 'L':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
break;
case 'M':
SDL_RenderDrawLine(rend, x, y+h, x, y);
SDL_RenderDrawLine(rend, x, y, x+w/2, y+h/3);
SDL_RenderDrawLine(rend, x+w/2, y+h/3, x+w, y);
SDL_RenderDrawLine(rend, x+w, y, x+w, y+h);
break;
case 'N':
SDL_RenderDrawLine(rend, x, y+h, x, y);
SDL_RenderDrawLine(rend, x, y, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y+h, x+w, y);
break;
case 'O':
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x+w, y, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y+h, x, y+h);
SDL_RenderDrawLine(rend, x, y+h, x, y);
break;
case 'P':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x+w, y, x+w, y+h/2);
SDL_RenderDrawLine(rend, x+w, y+h/2, x, y+h/2);
break;
case 'R':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x+w, y, x+w, y+h/2);
SDL_RenderDrawLine(rend, x+w, y+h/2, x, y+h/2);
SDL_RenderDrawLine(rend, x+w/2, y+h/2, x+w, y+h);
break;
case 'S':
SDL_RenderDrawLine(rend, x+w, y, x, y);
SDL_RenderDrawLine(rend, x, y, x, y+h/2);
SDL_RenderDrawLine(rend, x, y+h/2, x+w, y+h/2);
SDL_RenderDrawLine(rend, x+w, y+h/2, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y+h, x, y+h);
break;
case 'T':
SDL_RenderDrawLine(rend, x, y, x+w, y);
SDL_RenderDrawLine(rend, x+w/2, y, x+w/2, y+h);
break;
case 'U':
SDL_RenderDrawLine(rend, x, y, x, y+h);
SDL_RenderDrawLine(rend, x, y+h, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y+h, x+w, y);
break;
case 'V':
SDL_RenderDrawLine(rend, x, y, x+w/2, y+h);
SDL_RenderDrawLine(rend, x+w/2, y+h, x+w, y);
break;
case 'X':
SDL_RenderDrawLine(rend, x, y, x+w, y+h);
SDL_RenderDrawLine(rend, x+w, y, x, y+h);
break;
case 'Y':
SDL_RenderDrawLine(rend, x, y, x+w/2, y+h/2);
SDL_RenderDrawLine(rend, x+w, y, x+w/2, y+h/2);
SDL_RenderDrawLine(rend, x+w/2, y+h/2, x+w/2, y+h);
break;
default:
// Unknown letter - draw rectangle
SDL_Rect r = {x, y, w, h};
SDL_RenderDrawRect(rend, &r);
break;
}
}
SDLHeatmap::SDLHeatmap(SDLWindow& win, double t_min, double t_max)
: win_(win), t_min_(t_min), t_max_(t_max) {}
void SDLHeatmap::set_range(double t_min, double t_max) {
t_min_ = t_min;
t_max_ = t_max;
}
void SDLHeatmap::auto_range(const std::vector<double>& temps) {
if (temps.empty()) return;
auto minmax = std::minmax_element(temps.begin(), temps.end());
double margin = (*minmax.second - *minmax.first) * 0.05;
t_min_ = *minmax.first - margin;
t_max_ = *minmax.second + margin;
if (t_max_ - t_min_ < 1.0) {
t_min_ -= 0.5;
t_max_ += 0.5;
}
}
void SDLHeatmap::auto_range_2d(const std::vector<std::vector<double>>& temps) {
if (temps.empty()) return;
double min_v = temps[0][0];
double max_v = temps[0][0];
for (const auto& row : temps) {
for (double v : row) {
min_v = std::min(min_v, v);
max_v = std::max(max_v, v);
}
}
double margin = (max_v - min_v) * 0.05;
t_min_ = min_v - margin;
t_max_ = max_v + margin;
if (t_max_ - t_min_ < 1.0) {
t_min_ -= 0.5;
t_max_ += 0.5;
}
}
// Inferno colormap (matplotlib)
static const int INFERNO_SIZE = 256;
static const unsigned char INFERNO_MAP[256][3] = {
{0,0,4},{1,0,5},{1,1,6},{1,1,8},{2,1,10},{2,2,12},{2,2,14},{3,2,16},
{4,3,18},{4,3,20},{5,4,23},{6,4,25},{7,5,27},{8,5,29},{9,6,32},{10,6,34},
{11,7,36},{12,7,39},{13,8,41},{14,8,43},{16,9,46},{17,9,48},{18,10,51},{20,10,53},
{21,11,56},{22,11,58},{24,12,61},{25,12,63},{27,12,66},{28,13,68},{30,13,71},{31,13,73},
{33,13,76},{35,14,78},{36,14,81},{38,14,83},{40,14,86},{41,14,88},{43,14,91},{45,14,93},
{47,14,95},{48,14,98},{50,14,100},{52,14,102},{54,14,105},{56,14,107},{57,14,109},{59,14,111},
{61,13,113},{63,13,115},{65,13,117},{67,13,119},{69,13,121},{70,13,123},{72,13,125},{74,12,127},
{76,12,128},{78,12,130},{80,12,132},{82,11,133},{84,11,135},{86,11,136},{88,10,138},{90,10,139},
{92,10,140},{94,10,142},{96,9,143},{98,9,144},{100,9,145},{102,9,146},{104,9,147},{106,8,148},
{108,8,149},{110,8,150},{112,8,151},{114,8,152},{116,8,152},{118,8,153},{120,8,154},{122,8,154},
{124,8,155},{126,8,155},{128,8,156},{130,8,156},{132,8,156},{134,9,157},{136,9,157},{138,9,157},
{140,10,157},{142,10,157},{144,10,157},{146,11,157},{148,11,157},{150,12,157},{152,12,157},{154,13,157},
{156,14,157},{158,14,156},{160,15,156},{162,16,156},{164,17,155},{166,17,155},{168,18,154},{170,19,154},
{172,20,153},{174,21,152},{176,22,152},{178,23,151},{180,24,150},{182,25,149},{184,27,148},{186,28,147},
{188,29,146},{190,30,145},{192,32,144},{193,33,143},{195,35,142},{197,36,141},{199,38,139},{200,39,138},
{202,41,137},{204,43,135},{206,44,134},{207,46,133},{209,48,131},{210,50,130},{212,52,128},{214,54,127},
{215,56,125},{217,58,124},{218,60,122},{220,62,121},{221,64,119},{223,66,117},{224,68,116},{226,71,114},
{227,73,112},{228,75,111},{230,77,109},{231,79,107},{232,82,105},{234,84,104},{235,86,102},{236,89,100},
{237,91,98},{238,93,97},{239,96,95},{240,98,93},{241,100,91},{242,103,89},{243,105,88},{244,108,86},
{245,110,84},{246,113,82},{246,115,80},{247,118,79},{248,120,77},{249,123,75},{249,125,73},{250,128,71},
{250,130,70},{251,133,68},{252,135,66},{252,138,64},{253,141,62},{253,143,60},{254,146,59},{254,148,57},
{254,151,55},{255,153,53},{255,156,51},{255,159,50},{255,161,48},{255,164,46},{255,166,45},{255,169,43},
{255,172,41},{255,174,40},{255,177,38},{255,180,37},{255,182,35},{255,185,34},{255,188,32},{255,190,31},
{255,193,30},{255,196,29},{255,199,27},{255,201,26},{255,204,25},{255,207,24},{255,210,24},{255,212,23},
{255,215,22},{255,218,22},{255,221,21},{255,223,21},{255,226,21},{255,229,21},{255,231,21},{255,234,21},
{255,237,22},{255,239,22},{255,242,23},{255,244,24},{255,247,25},{254,249,27},{254,252,28},{252,254,30},
{251,255,31},{249,255,33},{248,255,35},{246,255,37},{244,255,39},{243,255,41},{241,255,43},{239,255,46},
{238,255,48},{236,255,50},{234,255,53},{232,255,55},{231,255,58},{229,255,60},{227,255,63},{225,255,66},
{223,255,68},{222,255,71},{220,255,74},{218,255,77},{216,255,80},{214,255,83},{212,255,86},{210,255,89},
{208,255,92},{206,255,95},{204,255,98},{202,255,101},{200,255,104},{198,255,107},{196,255,111},{194,255,114},
{192,255,117},{190,255,120},{188,255,124},{186,255,127},{184,255,130},{182,255,134},{180,255,137},{178,255,141},
{175,255,144},{173,255,148},{171,255,151},{169,255,155},{167,255,159},{165,255,162},{163,255,166},{252,255,164}
};
void SDLHeatmap::temp_to_rgb(double t, Uint8& r, Uint8& g, Uint8& b) const {
double norm = (t - t_min_) / (t_max_ - t_min_);
norm = std::max(0.0, std::min(1.0, norm));
double idx = norm * (INFERNO_SIZE - 1);
int i0 = static_cast<int>(idx);
int i1 = std::min(i0 + 1, INFERNO_SIZE - 1);
double frac = idx - i0;
r = static_cast<Uint8>(INFERNO_MAP[i0][0] * (1 - frac) + INFERNO_MAP[i1][0] * frac);
g = static_cast<Uint8>(INFERNO_MAP[i0][1] * (1 - frac) + INFERNO_MAP[i1][1] * frac);
b = static_cast<Uint8>(INFERNO_MAP[i0][2] * (1 - frac) + INFERNO_MAP[i1][2] * frac);
}
// Number rendering display
void SDLHeatmap::draw_number(SDL_Renderer* rend, int x, int y, double value) const {
char buffer[32];
snprintf(buffer, sizeof(buffer), "%.1f", value);
int offset = 0;
for (int i = 0; buffer[i] != '\0'; ++i) {
char c = buffer[i];
if (c == '.') {
SDL_Rect dot = {x + offset, y + 8, 2, 2};
SDL_RenderFillRect(rend, &dot);
offset += 3;
} else if (c >= '0' && c <= '9') {
int digit = c - '0';
draw_digit(rend, x + offset, y, digit);
offset += 7;
} else if (c == '-') {
SDL_RenderDrawLine(rend, x + offset, y + 5, x + offset + 4, y + 5);
offset += 6;
}
}
}
// Text rendering using 7-segment digits
void SDLHeatmap::draw_text(SDL_Renderer* rend, int x, int y, const char* text) const {
int offset = 0;
for (int i = 0; text[i] != '\0'; ++i) {
char c = text[i];
if (c == ' ') {
offset += 5;
} else if (c == '.') {
SDL_Rect dot = {x + offset, y + 8, 2, 2};
SDL_RenderFillRect(rend, &dot);
offset += 3;
} else if (c == ':') {
SDL_Rect dot1 = {x + offset + 1, y + 3, 2, 2};
SDL_Rect dot2 = {x + offset + 1, y + 7, 2, 2};
SDL_RenderFillRect(rend, &dot1);
SDL_RenderFillRect(rend, &dot2);
offset += 5;
} else if (c == '=') {
SDL_RenderDrawLine(rend, x + offset, y + 3, x + offset + 4, y + 3);
SDL_RenderDrawLine(rend, x + offset, y + 7, x + offset + 4, y + 7);
offset += 6;
} else if (c == '/') {
SDL_RenderDrawLine(rend, x + offset + 4, y, x + offset, y + 10);
offset += 6;
} else if (c == '[') {
SDL_RenderDrawLine(rend, x + offset, y, x + offset, y + 10);
SDL_RenderDrawLine(rend, x + offset, y, x + offset + 2, y);
SDL_RenderDrawLine(rend, x + offset, y + 10, x + offset + 2, y + 10);
offset += 4;
} else if (c == ']') {
SDL_RenderDrawLine(rend, x + offset + 2, y, x + offset + 2, y + 10);
SDL_RenderDrawLine(rend, x + offset, y, x + offset + 2, y);
SDL_RenderDrawLine(rend, x + offset, y + 10, x + offset + 2, y + 10);
offset += 4;
} else if (c >= '0' && c <= '9') {
draw_digit(rend, x + offset, y, c - '0');
offset += 7;
} else if (c >= 'A' && c <= 'Z') {
draw_letter(rend, x + offset, y, c);
offset += 6;
} else if (c >= 'a' && c <= 'z') {
draw_letter(rend, x + offset, y, c - 32); // Convert to uppercase
offset += 6;
}
}
}
// Colorbar: vertical gradient showing ΔT scale
void SDLHeatmap::draw_colorbar(SDL_Renderer* rend, int x, int y, int w, int h) const {
// Draw gradient
for (int i = 0; i < h; ++i) {
double t = t_max_ - (i * (t_max_ - t_min_)) / h;
Uint8 r, g, b;
temp_to_rgb(t, r, g, b);
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_RenderDrawLine(rend, x, y + i, x + w, y + i);
}
// Border
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_Rect border = {x - 1, y - 1, w + 2, h + 2};
SDL_RenderDrawRect(rend, &border);
// ΔT labels
int num_labels = 5;
for (int i = 0; i <= num_labels; ++i) {
int ly = y + (i * h) / num_labels;
double temp = t_max_ - (i * (t_max_ - t_min_)) / num_labels;
SDL_RenderDrawLine(rend, x + w, ly, x + w + 3, ly);
draw_number(rend, x + w + 5, ly - 5, temp);
}
// Label: ΔT [K]
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
draw_text(rend, x - 5, y - 15, "DT [K]");
}
// Info panel: material, time, status, speed
void SDLHeatmap::draw_info_panel(SDL_Renderer* rend, const SimInfo& info) const {
int x = 10;
int y = 5;
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
// Material name
draw_text(rend, x, y, info.material_name.c_str());
// Alpha value
char alpha_buf[64];
snprintf(alpha_buf, sizeof(alpha_buf), "a=%.2e", info.alpha);
draw_text(rend, x + 100, y, alpha_buf);
// Time and progress
char time_buf[64];
snprintf(time_buf, sizeof(time_buf), "t=%.2f/%.1f s", info.time, info.tmax);
draw_text(rend, x + 220, y, time_buf);
// Progress bar
int bar_x = x + 380;
int bar_w = 80;
int bar_h = 10;
double progress = info.time / info.tmax;
SDL_SetRenderDrawColor(rend, 80, 80, 80, 255);
SDL_Rect bar_bg = {bar_x, y + 2, bar_w, bar_h};
SDL_RenderFillRect(rend, &bar_bg);
SDL_SetRenderDrawColor(rend, 100, 200, 100, 255);
SDL_Rect bar_fg = {bar_x, y + 2, static_cast<int>(bar_w * progress), bar_h};
SDL_RenderFillRect(rend, &bar_fg);
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_RenderDrawRect(rend, &bar_bg);
// Speed indicator
char speed_buf[16];
snprintf(speed_buf, sizeof(speed_buf), "X%d", info.speed);
SDL_SetRenderDrawColor(rend, 150, 200, 255, 255);
draw_text(rend, bar_x + bar_w + 10, y, speed_buf);
// Paused indicator
if (info.paused) {
SDL_SetRenderDrawColor(rend, 255, 200, 50, 255);
draw_text(rend, x + 540, y, "PAUSED");
}
}
// Grid lines
void SDLHeatmap::draw_grid(SDL_Renderer* rend, int x0, int y0, int w, int h, int nx, int ny) const {
SDL_SetRenderDrawColor(rend, 100, 100, 100, 128);
// Vertical lines
for (int i = 1; i < nx; ++i) {
int x = x0 + (i * w) / nx;
for (int y = y0; y < y0 + h; y += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Horizontal lines
for (int j = 1; j < ny; ++j) {
int y = y0 + (j * h) / ny;
for (int x = x0; x < x0 + w; x += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
}
void SDLHeatmap::draw_1d_fullscreen(const std::vector<double>& temps, const SimInfo& info) {
if (temps.empty()) return;
SDL_Renderer* rend = win_.get_renderer();
int win_w = win_.get_width();
int win_h = win_.get_height();
int n = static_cast<int>(temps.size());
// Margins for axes and info panel
int margin_left = 60;
int margin_right = 80;
int margin_top = 25;
int margin_bottom = 50;
int plot_w = win_w - margin_left - margin_right;
int plot_h = win_h - margin_top - margin_bottom;
// Draw info panel at top
draw_info_panel(rend, info);
// Draw heatmap
for (int i = 0; i < n; i++) {
Uint8 r, g, b;
temp_to_rgb(temps[i], r, g, b);
int x1 = margin_left + (i * plot_w) / n;
int x2 = margin_left + ((i + 1) * plot_w) / n;
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_Rect rect = {x1, margin_top, x2 - x1 + 1, plot_h};
SDL_RenderFillRect(rend, &rect);
}
// Draw grid lines
draw_grid(rend, margin_left, margin_top, plot_w, plot_h, 5, 5);
// Draw temperature profile line (white curve)
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
for (int i = 0; i < n - 1; i++) {
double norm1 = (temps[i] - t_min_) / (t_max_ - t_min_);
double norm2 = (temps[i+1] - t_min_) / (t_max_ - t_min_);
norm1 = std::max(0.0, std::min(1.0, norm1));
norm2 = std::max(0.0, std::min(1.0, norm2));
int x1 = margin_left + (i * plot_w) / n;
int x2 = margin_left + ((i + 1) * plot_w) / n;
int y1 = margin_top + plot_h - static_cast<int>(norm1 * plot_h);
int y2 = margin_top + plot_h - static_cast<int>(norm2 * plot_h);
SDL_RenderDrawLine(rend, x1, y1, x2, y2);
}
// Find min and max temperature positions
int min_idx = 0, max_idx = 0;
double min_temp = temps[0], max_temp = temps[0];
for (int i = 1; i < n; i++) {
if (temps[i] < min_temp) { min_temp = temps[i]; min_idx = i; }
if (temps[i] > max_temp) { max_temp = temps[i]; max_idx = i; }
}
// Draw min marker (blue circle)
int min_x = margin_left + (min_idx * plot_w) / n;
double min_norm = (min_temp - t_min_) / (t_max_ - t_min_);
int min_y = margin_top + plot_h - static_cast<int>(min_norm * plot_h);
SDL_SetRenderDrawColor(rend, 100, 150, 255, 255);
for (int dx = -4; dx <= 4; dx++) {
for (int dy = -4; dy <= 4; dy++) {
if (dx*dx + dy*dy <= 16) SDL_RenderDrawPoint(rend, min_x + dx, min_y + dy);
}
}
// Draw max marker (red circle)
int max_x = margin_left + (max_idx * plot_w) / n;
double max_norm = (max_temp - t_min_) / (t_max_ - t_min_);
int max_y = margin_top + plot_h - static_cast<int>(max_norm * plot_h);
SDL_SetRenderDrawColor(rend, 255, 100, 100, 255);
for (int dx = -4; dx <= 4; dx++) {
for (int dy = -4; dy <= 4; dy++) {
if (dx*dx + dy*dy <= 16) SDL_RenderDrawPoint(rend, max_x + dx, max_y + dy);
}
}
// Draw colorbar on right side
draw_colorbar(rend, win_w - 70, margin_top, 15, plot_h);
// Draw axes
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
// X-axis
SDL_RenderDrawLine(rend, margin_left, win_h - margin_bottom,
margin_left + plot_w, win_h - margin_bottom);
// Y-axis (temperature)
SDL_RenderDrawLine(rend, margin_left, margin_top,
margin_left, win_h - margin_bottom);
// X-axis ticks and labels unit meters
int num_x_ticks = 5;
for (int i = 0; i <= num_x_ticks; i++) {
int x = margin_left + (i * plot_w) / num_x_ticks;
SDL_RenderDrawLine(rend, x, win_h - margin_bottom,
x, win_h - margin_bottom + 5);
double pos = (i * info.L) / num_x_ticks;
draw_number(rend, x - 10, win_h - margin_bottom + 10, pos);
}
// X-axis label
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, margin_left + plot_w / 2 - 20, win_h - 15, "X [M]");
// Y-axis ticks (temperature)
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
int num_y_ticks = 5;
for (int i = 0; i <= num_y_ticks; i++) {
int y = win_h - margin_bottom - (i * plot_h) / num_y_ticks;
SDL_RenderDrawLine(rend, margin_left - 5, y, margin_left, y);
double temp = t_min_ + (i * (t_max_ - t_min_)) / num_y_ticks;
draw_number(rend, margin_left - 50, y - 5, temp);
}
// Boundary condition labels
SDL_SetRenderDrawColor(rend, 150, 255, 150, 255);
draw_text(rend, margin_left - 5, margin_top + plot_h + 25, "NEUMANN");
SDL_SetRenderDrawColor(rend, 255, 180, 100, 255);
char dirichlet_buf[32];
snprintf(dirichlet_buf, sizeof(dirichlet_buf), "U=%.0fK", info.u0);
draw_text(rend, margin_left + plot_w - 40, margin_top + plot_h + 25, dirichlet_buf);
// Heat source labels
// Source 1: [L/10, 2L/10]
int src1_x1 = margin_left + static_cast<int>((1.0/10.0) * plot_w);
int src1_x2 = margin_left + static_cast<int>((2.0/10.0) * plot_w);
int src1_center = (src1_x1 + src1_x2) / 2;
// Source 2: [5L/10, 6L/10]
int src2_x1 = margin_left + static_cast<int>((5.0/10.0) * plot_w);
int src2_x2 = margin_left + static_cast<int>((6.0/10.0) * plot_w);
int src2_center = (src2_x1 + src2_x2) / 2;
// Draw source region
// Source 1
SDL_SetRenderDrawColor(rend, 0, 255, 255, 255);
SDL_Rect src1_rect = {src1_x1, margin_top, src1_x2 - src1_x1, plot_h};
SDL_RenderDrawRect(rend, &src1_rect);
// Source 2
SDL_Rect src2_rect = {src2_x1, margin_top, src2_x2 - src2_x1, plot_h};
SDL_RenderDrawRect(rend, &src2_rect);
// Draw source region brackets at bottom
int bracket_y = win_h - margin_bottom + 35;
// Source 1 bracket with arrow pointing up
SDL_RenderDrawLine(rend, src1_x1, bracket_y, src1_x1, bracket_y - 5);
SDL_RenderDrawLine(rend, src1_x1, bracket_y - 5, src1_x2, bracket_y - 5);
SDL_RenderDrawLine(rend, src1_x2, bracket_y, src1_x2, bracket_y - 5);
// Arrow pointing to source region
int arrow_x1 = src1_center;
SDL_RenderDrawLine(rend, arrow_x1, bracket_y - 5, arrow_x1, bracket_y - 12);
SDL_RenderDrawLine(rend, arrow_x1 - 3, bracket_y - 9, arrow_x1, bracket_y - 12);
SDL_RenderDrawLine(rend, arrow_x1 + 3, bracket_y - 9, arrow_x1, bracket_y - 12);
// Source 2 bracket with arrow
SDL_RenderDrawLine(rend, src2_x1, bracket_y, src2_x1, bracket_y - 5);
SDL_RenderDrawLine(rend, src2_x1, bracket_y - 5, src2_x2, bracket_y - 5);
SDL_RenderDrawLine(rend, src2_x2, bracket_y, src2_x2, bracket_y - 5);
int arrow_x2 = src2_center;
SDL_RenderDrawLine(rend, arrow_x2, bracket_y - 5, arrow_x2, bracket_y - 12);
SDL_RenderDrawLine(rend, arrow_x2 - 3, bracket_y - 9, arrow_x2, bracket_y - 12);
SDL_RenderDrawLine(rend, arrow_x2 + 3, bracket_y - 9, arrow_x2, bracket_y - 12);
// Draw source labels with power percentage
SDL_SetRenderDrawColor(rend, 255, 200, 0, 255); // Yellow for high power
draw_text(rend, src1_center - 30, bracket_y + 2, "F1 100");
SDL_SetRenderDrawColor(rend, 200, 150, 50, 255); // Dimmer for lower power
draw_text(rend, src2_center - 25, bracket_y + 2, "F2 75");
}
void SDLHeatmap::draw_2d_fullscreen(const std::vector<std::vector<double>>& temps, const SimInfo& info) {
if (temps.empty()) return;
SDL_Renderer* rend = win_.get_renderer();
int win_w = win_.get_width();
int win_h = win_.get_height();
int ny = static_cast<int>(temps.size());
int nx = static_cast<int>(temps[0].size());
// Margins for axes and info panel
int margin_left = 60;
int margin_right = 80; // Space for colorbar
int margin_top = 25; // Space for info panel
int margin_bottom = 50;
int plot_w = win_w - margin_left - margin_right;
int plot_h = win_h - margin_top - margin_bottom;
// Draw panel at top
draw_info_panel(rend, info);
// Bilinear interpolation with subsampling
int sub = 2;
int render_nx = (nx - 1) * sub;
int render_ny = (ny - 1) * sub;
for (int sj = 0; sj < render_ny; ++sj) {
for (int si = 0; si < render_nx; ++si) {
double fi = static_cast<double>(si) / sub;
double fj = static_cast<double>(sj) / sub;
int i0 = static_cast<int>(fi);
int j0 = static_cast<int>(fj);
int i1 = std::min(i0 + 1, nx - 1);
int j1 = std::min(j0 + 1, ny - 1);
double fx = fi - i0;
double fy = fj - j0;
double t = temps[j0][i0] * (1-fx) * (1-fy)
+ temps[j0][i1] * fx * (1-fy)
+ temps[j1][i0] * (1-fx) * fy
+ temps[j1][i1] * fx * fy;
Uint8 r, g, b;
temp_to_rgb(t, r, g, b);
int x1 = margin_left + (si * plot_w) / render_nx;
int x2 = margin_left + ((si + 1) * plot_w) / render_nx;
// Flip Y-axis: y=0 (Neumann) at bottom, y=L (Dirichlet) at top
int y1 = margin_top + plot_h - ((sj + 1) * plot_h) / render_ny;
int y2 = margin_top + plot_h - (sj * plot_h) / render_ny;
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_Rect rect = {x1, y1, x2 - x1 + 1, y2 - y1 + 1};
SDL_RenderFillRect(rend, &rect);
}
}
// Draw grid lines
draw_grid(rend, margin_left, margin_top, plot_w, plot_h, 5, 5);
// Find and mark min/max temperature positions
int min_i = 0, min_j = 0, max_i = 0, max_j = 0;
double min_temp = temps[0][0], max_temp = temps[0][0];
for (int j = 0; j < ny; j++) {
for (int i = 0; i < nx; i++) {
if (temps[j][i] < min_temp) { min_temp = temps[j][i]; min_i = i; min_j = j; }
if (temps[j][i] > max_temp) { max_temp = temps[j][i]; max_i = i; max_j = j; }
}
}
// Draw min marker (blue circle)
int min_x = margin_left + (min_i * plot_w) / nx;
int min_y = margin_top + plot_h - (min_j * plot_h) / ny; // Flip Y
SDL_SetRenderDrawColor(rend, 100, 150, 255, 255);
for (int dx = -5; dx <= 5; dx++) {
for (int dy = -5; dy <= 5; dy++) {
if (dx*dx + dy*dy <= 25 && dx*dx + dy*dy >= 9)
SDL_RenderDrawPoint(rend, min_x + dx, min_y + dy);
}
}
// Draw max marker (red circle)
int max_x = margin_left + (max_i * plot_w) / nx;
int max_y = margin_top + plot_h - (max_j * plot_h) / ny; // Flip Y
SDL_SetRenderDrawColor(rend, 255, 100, 100, 255);
for (int dx = -5; dx <= 5; dx++) {
for (int dy = -5; dy <= 5; dy++) {
if (dx*dx + dy*dy <= 25 && dx*dx + dy*dy >= 9)
SDL_RenderDrawPoint(rend, max_x + dx, max_y + dy);
}
}
// Draw colorbar on right side
draw_colorbar(rend, win_w - 70, margin_top, 15, plot_h);
// Draw axes
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
// X-axis
SDL_RenderDrawLine(rend, margin_left, win_h - margin_bottom,
margin_left + plot_w, win_h - margin_bottom);
// Y-axis
SDL_RenderDrawLine(rend, margin_left, margin_top,
margin_left, win_h - margin_bottom);
// X-axis ticks
int num_ticks = 5;
for (int i = 0; i <= num_ticks; i++) {
int x = margin_left + (i * plot_w) / num_ticks;
SDL_RenderDrawLine(rend, x, win_h - margin_bottom,
x, win_h - margin_bottom + 5);
double pos = (i * info.L) / num_ticks;
draw_number(rend, x - 10, win_h - margin_bottom + 10, pos);
}
// X-axis label
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, margin_left + plot_w / 2 - 20, win_h - 15, "X [M]");
// Y-axis ticks
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
for (int i = 0; i <= num_ticks; i++) {
int y = win_h - margin_bottom - (i * plot_h) / num_ticks;
SDL_RenderDrawLine(rend, margin_left - 5, y, margin_left, y);
double pos = (i * info.L) / num_ticks;
draw_number(rend, 10, y - 5, pos);
}
// Y-axis label
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, 5, margin_top + plot_h / 2 - 5, "Y[M]");
// Boundary condition labels for 2D
// Bottom-left corner: Neumann (x=0, y=0)
SDL_SetRenderDrawColor(rend, 150, 255, 150, 255);
draw_text(rend, margin_left - 5, margin_top + plot_h + 25, "NEUMANN");
// Top-right: Dirichlet (x=L, y=L)
SDL_SetRenderDrawColor(rend, 255, 180, 100, 255);
char dirichlet_buf[32];
snprintf(dirichlet_buf, sizeof(dirichlet_buf), "U=%.0fK", info.u0);
draw_text(rend, margin_left + plot_w - 40, margin_top - 12, dirichlet_buf);
// Calculate source positions in screen coordinates
double src_x1_norm = 1.0/6.0, src_x2_norm = 2.0/6.0;
double src_x3_norm = 4.0/6.0, src_x4_norm = 5.0/6.0;
double src_y1_norm = 1.0/6.0, src_y2_norm = 2.0/6.0;
double src_y3_norm = 4.0/6.0, src_y4_norm = 5.0/6.0;
// Screen coordinates for source regions
int sx1 = margin_left + static_cast<int>(src_x1_norm * plot_w);
int sx2 = margin_left + static_cast<int>(src_x2_norm * plot_w);
int sx3 = margin_left + static_cast<int>(src_x3_norm * plot_w);
int sx4 = margin_left + static_cast<int>(src_x4_norm * plot_w);
int sy1 = margin_top + plot_h - static_cast<int>(src_y2_norm * plot_h);
int sy2 = margin_top + plot_h - static_cast<int>(src_y1_norm * plot_h);
int sy3 = margin_top + plot_h - static_cast<int>(src_y4_norm * plot_h);
int sy4 = margin_top + plot_h - static_cast<int>(src_y3_norm * plot_h);
// Draw source region rectangles
SDL_SetRenderDrawColor(rend, 0, 255, 255, 255);
SDL_Rect src_bl = {sx1, sy1, sx2 - sx1, sy2 - sy1}; // Bottom-left
SDL_Rect src_br = {sx3, sy1, sx4 - sx3, sy2 - sy1}; // Bottom-right
SDL_Rect src_tl = {sx1, sy3, sx2 - sx1, sy4 - sy3}; // Top-left
SDL_Rect src_tr = {sx3, sy3, sx4 - sx3, sy4 - sy3}; // Top-right
// Outer border
SDL_RenderDrawRect(rend, &src_bl);
SDL_RenderDrawRect(rend, &src_br);
SDL_RenderDrawRect(rend, &src_tl);
SDL_RenderDrawRect(rend, &src_tr);
// Inner border
SDL_Rect src_bl_inner = {sx1 + 1, sy1 + 1, sx2 - sx1 - 2, sy2 - sy1 - 2};
SDL_Rect src_br_inner = {sx3 + 1, sy1 + 1, sx4 - sx3 - 2, sy2 - sy1 - 2};
SDL_Rect src_tl_inner = {sx1 + 1, sy3 + 1, sx2 - sx1 - 2, sy4 - sy3 - 2};
SDL_Rect src_tr_inner = {sx3 + 1, sy3 + 1, sx4 - sx3 - 2, sy4 - sy3 - 2};
SDL_RenderDrawRect(rend, &src_bl_inner);
SDL_RenderDrawRect(rend, &src_br_inner);
SDL_RenderDrawRect(rend, &src_tl_inner);
SDL_RenderDrawRect(rend, &src_tr_inner);
// Draw corner marks for each source
int mark_len = 5;
// Bottom-left source corners
SDL_RenderDrawLine(rend, sx1 - mark_len, sy1, sx1, sy1);
SDL_RenderDrawLine(rend, sx1, sy1 - mark_len, sx1, sy1);
SDL_RenderDrawLine(rend, sx2, sy2, sx2 + mark_len, sy2);
SDL_RenderDrawLine(rend, sx2, sy2, sx2, sy2 + mark_len);
// Draw source labels with "F" for flux/heat source
SDL_SetRenderDrawColor(rend, 255, 200, 0, 255); // Yellow
draw_text(rend, (sx1 + sx2) / 2 - 5, (sy1 + sy2) / 2 - 5, "F1");
draw_text(rend, (sx3 + sx4) / 2 - 5, (sy1 + sy2) / 2 - 5, "F2");
draw_text(rend, (sx1 + sx2) / 2 - 5, (sy3 + sy4) / 2 - 5, "F3");
draw_text(rend, (sx3 + sx4) / 2 - 5, (sy3 + sy4) / 2 - 5, "F4");
}
void SDLHeatmap::draw_1d_cell(const std::vector<double>& temps, const SimInfo& info,
int cell_x, int cell_y, int cell_w, int cell_h) {
if (temps.empty()) return;
SDL_Renderer* rend = win_.get_renderer();
int n = static_cast<int>(temps.size());
// Margins for cell mode
int margin_left = 50;
int margin_right = 60;
int margin_top = 20;
int margin_bottom = 40;
int plot_x = cell_x + margin_left;
int plot_y = cell_y + margin_top;
int plot_w = cell_w - margin_left - margin_right;
int plot_h = cell_h - margin_top - margin_bottom;
// Draw material name and alpha at top
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
draw_text(rend, cell_x + 5, cell_y + 5, info.material_name.c_str());
char alpha_buf[32];
snprintf(alpha_buf, sizeof(alpha_buf), "A=%.1E", info.alpha);
draw_text(rend, cell_x + 80, cell_y + 5, alpha_buf);
// Draw time
char time_buf[32];
snprintf(time_buf, sizeof(time_buf), "T=%.1FS", info.time);
draw_text(rend, cell_x + cell_w - 70, cell_y + 5, time_buf);
// Draw heatmap
for (int i = 0; i < n; i++) {
Uint8 r, g, b;
temp_to_rgb(temps[i], r, g, b);
int x1 = plot_x + (i * plot_w) / n;
int x2 = plot_x + ((i + 1) * plot_w) / n;
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_Rect rect = {x1, plot_y, x2 - x1 + 1, plot_h};
SDL_RenderFillRect(rend, &rect);
}
// Draw temperature profile line (white curve)
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
for (int i = 0; i < n - 1; i++) {
double norm1 = (temps[i] - t_min_) / (t_max_ - t_min_);
double norm2 = (temps[i+1] - t_min_) / (t_max_ - t_min_);
norm1 = std::max(0.0, std::min(1.0, norm1));
norm2 = std::max(0.0, std::min(1.0, norm2));
int x1 = plot_x + (i * plot_w) / n;
int x2 = plot_x + ((i + 1) * plot_w) / n;
int y1 = plot_y + plot_h - static_cast<int>(norm1 * plot_h);
int y2 = plot_y + plot_h - static_cast<int>(norm2 * plot_h);
SDL_RenderDrawLine(rend, x1, y1, x2, y2);
}
// Temperature value projections at key positions
// Temperature values at: x=0 (Neumann), center of sources, x=L (Dirichlet)
int key_indices[] = {0, n/10 + n/20, n/2 + n/20, n-1}; // x=0, src1 center, src2 center, x=L
//const char* key_labels[] = {"", "S1", "S2", ""};
for (int k = 0; k < 4; k++) {
int idx = key_indices[k];
if (idx >= n) idx = n - 1;
double temp_val = temps[idx];
double norm = (temp_val - t_min_) / (t_max_ - t_min_);
norm = std::max(0.0, std::min(1.0, norm));
int px = plot_x + (idx * plot_w) / n;
int py = plot_y + plot_h - static_cast<int>(norm * plot_h);
// Draw projection line to Y-axis (dashed)
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
for (int x = plot_x; x < px; x += 4) {
SDL_RenderDrawPoint(rend, x, py);
}
// Draw small marker at the point
SDL_SetRenderDrawColor(rend, 255, 255, 0, 255);
SDL_Rect marker = {px - 2, py - 2, 5, 5};
SDL_RenderFillRect(rend, &marker);
// Draw temperature value near the projection on Y-axis
SDL_SetRenderDrawColor(rend, 255, 255, 150, 255);
char val_buf[16];
snprintf(val_buf, sizeof(val_buf), "%.0f", temp_val);
// Offset labels to avoid overlap
int label_y = py - 3 + (k % 2) * 12;
if (k == 0) {
draw_text(rend, plot_x - 25, label_y, val_buf);
} else if (k == 3) {
draw_text(rend, px + 3, label_y, val_buf);
}
}
// Draw colorbar on right side
int cb_x = cell_x + cell_w - margin_right + 5;
int cb_w = 12;
int cb_h = plot_h;
for (int i = 0; i < cb_h; ++i) {
double t = t_max_ - (i * (t_max_ - t_min_)) / cb_h;
Uint8 r, g, b;
temp_to_rgb(t, r, g, b);
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_RenderDrawLine(rend, cb_x, plot_y + i, cb_x + cb_w, plot_y + i);
}
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_Rect cb_border = {cb_x - 1, plot_y - 1, cb_w + 2, cb_h + 2};
SDL_RenderDrawRect(rend, &cb_border);
// Colorbar labels (min/max)
draw_number(rend, cb_x + cb_w + 3, plot_y - 3, t_max_);
draw_number(rend, cb_x + cb_w + 3, plot_y + cb_h - 8, t_min_);
// Draw axes
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_RenderDrawLine(rend, plot_x, plot_y + plot_h, plot_x + plot_w, plot_y + plot_h); // X-axis
SDL_RenderDrawLine(rend, plot_x, plot_y, plot_x, plot_y + plot_h); // Y-axis
// X-axis labels (0 and L)
draw_number(rend, plot_x - 5, plot_y + plot_h + 5, 0.0);
draw_number(rend, plot_x + plot_w - 15, plot_y + plot_h + 5, info.L);
// Y-axis label "ΔT [K]" for temperature increase
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, plot_x - 45, plot_y + plot_h / 2 - 5, "DT[K]");
// Y-axis labels (temp range)
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
draw_number(rend, plot_x - 45, plot_y - 3, t_max_);
draw_number(rend, plot_x - 45, plot_y + plot_h - 8, t_min_);
// X-axis label
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, plot_x + plot_w / 2 - 10, plot_y + plot_h + 25, "X[M]");
// Boundary condition labels
SDL_SetRenderDrawColor(rend, 150, 255, 150, 255);
draw_text(rend, plot_x - 5, plot_y + plot_h + 15, "N"); // Neumann at x=0
SDL_SetRenderDrawColor(rend, 255, 180, 100, 255);
draw_text(rend, plot_x + plot_w - 10, plot_y + plot_h + 15, "D"); // Dirichlet at x=L
// Heat source regions - improved visualization
int src1_x1 = plot_x + static_cast<int>((1.0/10.0) * plot_w);
int src1_x2 = plot_x + static_cast<int>((2.0/10.0) * plot_w);
int src2_x1 = plot_x + static_cast<int>((5.0/10.0) * plot_w);
int src2_x2 = plot_x + static_cast<int>((6.0/10.0) * plot_w);
// Draw semi-transparent filled regions for heat sources
SDL_SetRenderDrawColor(rend, 255, 200, 0, 255); // Yellow/orange for heat
// Source 1
for (int y = plot_y; y < plot_y + plot_h; y += 3) {
for (int x = src1_x1; x < src1_x2; x += 3) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Source 2
for (int y = plot_y; y < plot_y + plot_h; y += 3) {
for (int x = src2_x1; x < src2_x2; x += 3) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Draw thick borders around heat sources
SDL_SetRenderDrawColor(rend, 255, 150, 0, 255); // Orange border
// Source 1
SDL_Rect src1 = {src1_x1, plot_y, src1_x2 - src1_x1, plot_h};
SDL_Rect src1_inner = {src1_x1 + 1, plot_y + 1, src1_x2 - src1_x1 - 2, plot_h - 2};
SDL_RenderDrawRect(rend, &src1);
SDL_RenderDrawRect(rend, &src1_inner);
// Source 2
SDL_Rect src2 = {src2_x1, plot_y, src2_x2 - src2_x1, plot_h};
SDL_Rect src2_inner = {src2_x1 + 1, plot_y + 1, src2_x2 - src2_x1 - 2, plot_h - 2};
SDL_RenderDrawRect(rend, &src2);
SDL_RenderDrawRect(rend, &src2_inner);
// Draw arrows pointing down into the sources (heat input indicator)
SDL_SetRenderDrawColor(rend, 255, 255, 0, 255); // Bright yellow arrows
int arrow_y = plot_y - 8;
int src1_cx = (src1_x1 + src1_x2) / 2;
int src2_cx = (src2_x1 + src2_x2) / 2;
// Arrow 1 pointing down
SDL_RenderDrawLine(rend, src1_cx, arrow_y, src1_cx, plot_y - 2);
SDL_RenderDrawLine(rend, src1_cx - 3, plot_y - 5, src1_cx, plot_y - 2);
SDL_RenderDrawLine(rend, src1_cx + 3, plot_y - 5, src1_cx, plot_y - 2);
// Arrow 2 pointing down
SDL_RenderDrawLine(rend, src2_cx, arrow_y, src2_cx, plot_y - 2);
SDL_RenderDrawLine(rend, src2_cx - 3, plot_y - 5, src2_cx, plot_y - 2);
SDL_RenderDrawLine(rend, src2_cx + 3, plot_y - 5, src2_cx, plot_y - 2);
// Find and draw min/max temperature markers
int min_idx = 0, max_idx = 0;
double min_temp = temps[0], max_temp = temps[0];
for (int i = 1; i < n; i++) {
if (temps[i] < min_temp) { min_temp = temps[i]; min_idx = i; }
if (temps[i] > max_temp) { max_temp = temps[i]; max_idx = i; }
}
// Min marker (blue circle)
int min_x = plot_x + (min_idx * plot_w) / n;
double min_norm = (min_temp - t_min_) / (t_max_ - t_min_);
min_norm = std::max(0.0, std::min(1.0, min_norm));
int min_y = plot_y + plot_h - static_cast<int>(min_norm * plot_h);
SDL_SetRenderDrawColor(rend, 100, 150, 255, 255);
for (int dx = -3; dx <= 3; dx++) {
for (int dy = -3; dy <= 3; dy++) {
if (dx*dx + dy*dy <= 9) SDL_RenderDrawPoint(rend, min_x + dx, min_y + dy);
}
}
// Max marker (red circle)
int max_x = plot_x + (max_idx * plot_w) / n;
double max_norm = (max_temp - t_min_) / (t_max_ - t_min_);
max_norm = std::max(0.0, std::min(1.0, max_norm));
int max_y = plot_y + plot_h - static_cast<int>(max_norm * plot_h);
SDL_SetRenderDrawColor(rend, 255, 100, 100, 255);
for (int dx = -3; dx <= 3; dx++) {
for (int dy = -3; dy <= 3; dy++) {
if (dx*dx + dy*dy <= 9) SDL_RenderDrawPoint(rend, max_x + dx, max_y + dy);
}
}
// Progress bar
int bar_x = cell_x + cell_w - 65;
int bar_y = cell_y + cell_h - 18;
int bar_w = 55;
int bar_h = 8;
double progress = info.time / info.tmax;
SDL_SetRenderDrawColor(rend, 60, 60, 60, 255);
SDL_Rect bar_bg = {bar_x, bar_y, bar_w, bar_h};
SDL_RenderFillRect(rend, &bar_bg);
SDL_SetRenderDrawColor(rend, 80, 180, 80, 255);
SDL_Rect bar_fg = {bar_x, bar_y, static_cast<int>(bar_w * progress), bar_h};
SDL_RenderFillRect(rend, &bar_fg);
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
SDL_RenderDrawRect(rend, &bar_bg);
// Speed indicator
char speed_buf[16];
snprintf(speed_buf, sizeof(speed_buf), "X%d", info.speed);
SDL_SetRenderDrawColor(rend, 150, 200, 255, 255);
draw_text(rend, cell_x + cell_w - 130, cell_y + cell_h - 18, speed_buf);
// Paused indicator
if (info.paused) {
SDL_SetRenderDrawColor(rend, 255, 200, 50, 255);
draw_text(rend, cell_x + 5, cell_y + cell_h - 18, "PAUSED");
}
// Draw border
SDL_SetRenderDrawColor(rend, 100, 100, 100, 255);
SDL_Rect border = {plot_x, plot_y, plot_w, plot_h};
SDL_RenderDrawRect(rend, &border);
}
void SDLHeatmap::draw_2d_cell(const std::vector<std::vector<double>>& temps, const SimInfo& info,
int cell_x, int cell_y, int cell_w, int cell_h) {
if (temps.empty()) return;
SDL_Renderer* rend = win_.get_renderer();
int ny = static_cast<int>(temps.size());
int nx = static_cast<int>(temps[0].size());
// Margins for cell mode
int margin_left = 50;
int margin_right = 60;
int margin_top = 20;
int margin_bottom = 40;
int plot_x = cell_x + margin_left;
int plot_y = cell_y + margin_top;
int plot_w = cell_w - margin_left - margin_right;
int plot_h = cell_h - margin_top - margin_bottom;
// Draw material name and alpha at top
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
draw_text(rend, cell_x + 5, cell_y + 5, info.material_name.c_str());
char alpha_buf[32];
snprintf(alpha_buf, sizeof(alpha_buf), "A=%.1E", info.alpha);
draw_text(rend, cell_x + 80, cell_y + 5, alpha_buf);
// Draw time
char time_buf[32];
snprintf(time_buf, sizeof(time_buf), "T=%.1FS", info.time);
draw_text(rend, cell_x + cell_w - 70, cell_y + 5, time_buf);
// Draw heatmap with bilinear interpolation
int sub = 2;
int render_nx = (nx - 1) * sub;
int render_ny = (ny - 1) * sub;
for (int sj = 0; sj < render_ny; ++sj) {
for (int si = 0; si < render_nx; ++si) {
double fi = static_cast<double>(si) / sub;
double fj = static_cast<double>(sj) / sub;
int i0 = static_cast<int>(fi);
int j0 = static_cast<int>(fj);
int i1 = std::min(i0 + 1, nx - 1);
int j1 = std::min(j0 + 1, ny - 1);
double fx = fi - i0;
double fy = fj - j0;
double t = temps[j0][i0] * (1-fx) * (1-fy)
+ temps[j0][i1] * fx * (1-fy)
+ temps[j1][i0] * (1-fx) * fy
+ temps[j1][i1] * fx * fy;
Uint8 r, g, b;
temp_to_rgb(t, r, g, b);
int x1 = plot_x + (si * plot_w) / render_nx;
int x2 = plot_x + ((si + 1) * plot_w) / render_nx;
// Flip Y-axis
int y1 = plot_y + plot_h - ((sj + 1) * plot_h) / render_ny;
int y2 = plot_y + plot_h - (sj * plot_h) / render_ny;
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_Rect rect = {x1, y1, x2 - x1 + 1, y2 - y1 + 1};
SDL_RenderFillRect(rend, &rect);
}
}
// Draw heat flow arrows (negative gradient shows direction of heat flow)
// Heat flows from hot to cold regions
int arrow_grid = 8; // 8x8 grids
int arrow_len = std::min(plot_w, plot_h) / (arrow_grid * 2);
for (int aj = 0; aj < arrow_grid; aj++) {
for (int ai = 0; ai < arrow_grid; ai++) {
// Sample point in the grid
int i = (ai * (nx - 1)) / arrow_grid;
int j = (aj * (ny - 1)) / arrow_grid;
if (i <= 0 || i >= nx - 1 || j <= 0 || j >= ny - 1) continue;
// Calculate gradient
double dTdx = (temps[j][i+1] - temps[j][i-1]) / (2.0 * (info.L / nx));
double dTdy = (temps[j+1][i] - temps[j-1][i]) / (2.0 * (info.L / ny));
// Heat flow is
double flow_x = -dTdx;
double flow_y = -dTdy;
// Normalize and scale arrow
double mag = std::sqrt(flow_x * flow_x + flow_y * flow_y);
if (mag < 0.1) continue;
double scale = arrow_len / mag;
if (scale > arrow_len) scale = arrow_len; // Limit max length
int ax = static_cast<int>(flow_x * scale);
int ay = static_cast<int>(flow_y * scale);
// Arrow base position
int bx = plot_x + (i * plot_w) / nx;
int by = plot_y + plot_h - (j * plot_h) / ny; // Y flipped
// Arrow tip
int tx = bx + ax;
int ty = by - ay; // Y flipped
// Draw arrow line
SDL_SetRenderDrawColor(rend, 0, 255, 200, 255);
SDL_RenderDrawLine(rend, bx, by, tx, ty);
// Draw arrowhead
double angle = std::atan2(-ay, ax);
int head_len = 4;
int hx1 = tx - static_cast<int>(head_len * std::cos(angle - 0.5));
int hy1 = ty - static_cast<int>(head_len * std::sin(angle - 0.5));
int hx2 = tx - static_cast<int>(head_len * std::cos(angle + 0.5));
int hy2 = ty - static_cast<int>(head_len * std::sin(angle + 0.5));
SDL_RenderDrawLine(rend, tx, ty, hx1, hy1);
SDL_RenderDrawLine(rend, tx, ty, hx2, hy2);
}
}
// Draw contour lines (isotherms)
int num_contours = 5;
for (int c = 1; c < num_contours; c++) {
double contour_temp = t_min_ + c * (t_max_ - t_min_) / num_contours;
// Color based on temperature level
Uint8 cr, cg, cb;
temp_to_rgb(contour_temp, cr, cg, cb);
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
for (int j = 0; j < ny - 1; j++) {
for (int i = 0; i < nx - 1; i++) {
double t00 = temps[j][i];
double t10 = temps[j][i+1];
double t01 = temps[j+1][i];
double t11 = temps[j+1][i+1];
double cell_min = std::min({t00, t10, t01, t11});
double cell_max = std::max({t00, t10, t01, t11});
if (contour_temp >= cell_min && contour_temp <= cell_max) {
int cx = plot_x + ((i * 2 + 1) * plot_w) / (2 * nx);
int cy = plot_y + plot_h - ((j * 2 + 1) * plot_h) / (2 * ny);
// Draw small cross for contour point
SDL_RenderDrawPoint(rend, cx, cy);
SDL_RenderDrawPoint(rend, cx+1, cy);
SDL_RenderDrawPoint(rend, cx-1, cy);
SDL_RenderDrawPoint(rend, cx, cy+1);
SDL_RenderDrawPoint(rend, cx, cy-1);
}
}
}
}
// Draw temperature profile along bottom edge (Y=0, varying X)
int profile_h = 25; // Height of profile graph
int profile_y = plot_y + plot_h + 5; // Below the main plot
SDL_SetRenderDrawColor(rend, 100, 200, 255, 255); // Light blue for X profile
for (int i = 0; i < nx - 1; i++) {
double t1 = temps[0][i];
double t2 = temps[0][i+1];
double norm1 = (t1 - t_min_) / (t_max_ - t_min_);
double norm2 = (t2 - t_min_) / (t_max_ - t_min_);
norm1 = std::max(0.0, std::min(1.0, norm1));
norm2 = std::max(0.0, std::min(1.0, norm2));
int x1 = plot_x + (i * plot_w) / nx;
int x2 = plot_x + ((i + 1) * plot_w) / nx;
int y1 = profile_y + profile_h - static_cast<int>(norm1 * profile_h);
int y2 = profile_y + profile_h - static_cast<int>(norm2 * profile_h);
SDL_RenderDrawLine(rend, x1, y1, x2, y2);
}
// Draw temperature profile along left edge (X=0, varying Y)
int profile_w = 20; // Width of profile graph
int profile_x = plot_x - profile_w - 5; // Left of the main plot
SDL_SetRenderDrawColor(rend, 255, 200, 100, 255); // Orange for Y profile
for (int j = 0; j < ny - 1; j++) {
double t1 = temps[j][0];
double t2 = temps[j+1][0];
double norm1 = (t1 - t_min_) / (t_max_ - t_min_);
double norm2 = (t2 - t_min_) / (t_max_ - t_min_);
norm1 = std::max(0.0, std::min(1.0, norm1));
norm2 = std::max(0.0, std::min(1.0, norm2));
int y1 = plot_y + plot_h - (j * plot_h) / ny;
int y2 = plot_y + plot_h - ((j + 1) * plot_h) / ny;
int x1 = profile_x + static_cast<int>(norm1 * profile_w);
int x2 = profile_x + static_cast<int>(norm2 * profile_w);
SDL_RenderDrawLine(rend, x1, y1, x2, y2);
}
// Temperature values at key positions
struct ProjPt2D { int i; int j; };
ProjPt2D proj_pts_2d[] = {
{0, 0}, // Bottom-left (Neumann corner)
{nx-1, ny-1}, // Top-right (Dirichlet corner)
{nx/2, ny/2} // Center
};
for (int k = 0; k < 3; k++) {
int pi = proj_pts_2d[k].i;
int pj = proj_pts_2d[k].j;
double temp_val = temps[pj][pi];
int px = plot_x + (pi * plot_w) / nx;
int py = plot_y + plot_h - (pj * plot_h) / ny; // Y flipped
// Draw marker
SDL_SetRenderDrawColor(rend, 255, 255, 0, 255);
for (int dx = -2; dx <= 2; dx++) {
for (int dy = -2; dy <= 2; dy++) {
if (dx*dx + dy*dy <= 4) SDL_RenderDrawPoint(rend, px + dx, py + dy);
}
}
// Draw temperature value
SDL_SetRenderDrawColor(rend, 255, 255, 150, 255);
char val_buf[16];
snprintf(val_buf, sizeof(val_buf), "%.0f", temp_val);
// Position label
int lx = px + 4, ly = py - 5;
if (pi == 0) lx = px - 22;
if (pj == ny-1) ly = py + 2;
draw_text(rend, lx, ly, val_buf);
}
// Draw colorbar on right side
int cb_x = cell_x + cell_w - margin_right + 5;
int cb_w = 12;
int cb_h = plot_h;
for (int i = 0; i < cb_h; ++i) {
double t = t_max_ - (i * (t_max_ - t_min_)) / cb_h;
Uint8 r, g, b;
temp_to_rgb(t, r, g, b);
SDL_SetRenderDrawColor(rend, r, g, b, 255);
SDL_RenderDrawLine(rend, cb_x, plot_y + i, cb_x + cb_w, plot_y + i);
}
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_Rect cb_border = {cb_x - 1, plot_y - 1, cb_w + 2, cb_h + 2};
SDL_RenderDrawRect(rend, &cb_border);
// Colorbar labels (min/max)
draw_number(rend, cb_x + cb_w + 3, plot_y - 3, t_max_);
draw_number(rend, cb_x + cb_w + 3, plot_y + cb_h - 8, t_min_);
// Draw axes
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
SDL_RenderDrawLine(rend, plot_x, plot_y + plot_h, plot_x + plot_w, plot_y + plot_h); // X-axis
SDL_RenderDrawLine(rend, plot_x, plot_y, plot_x, plot_y + plot_h); // Y-axis
// X-axis labels (0 and L)
draw_number(rend, plot_x - 5, plot_y + plot_h + 5, 0.0);
draw_number(rend, plot_x + plot_w - 15, plot_y + plot_h + 5, info.L);
// Y-axis labels (0 and L)
draw_number(rend, plot_x - 30, plot_y + plot_h - 8, 0.0);
draw_number(rend, plot_x - 30, plot_y - 3, info.L);
// Axis labels with ΔT for temperature increase (colorbar)
SDL_SetRenderDrawColor(rend, 180, 180, 180, 255);
draw_text(rend, plot_x + plot_w / 2 - 10, plot_y + plot_h + 25, "X[M]");
draw_text(rend, plot_x - 30, plot_y + plot_h / 2 - 5, "Y");
// ΔT label next to colorbar
draw_text(rend, cb_x - 10, plot_y - 12, "DT[K]");
// Boundary condition labels
SDL_SetRenderDrawColor(rend, 150, 255, 150, 255);
draw_text(rend, plot_x - 5, plot_y + plot_h + 15, "N"); // Neumann at x=0, y=0
SDL_SetRenderDrawColor(rend, 255, 180, 100, 255);
draw_text(rend, plot_x + plot_w - 10, plot_y + plot_h + 15, "D"); // Dirichlet at x=L
draw_text(rend, plot_x + plot_w - 10, plot_y - 10, "D"); // Dirichlet at y=L
// Heat source regions
double src_x1 = 1.0/6.0, src_x2 = 2.0/6.0;
double src_x3 = 4.0/6.0, src_x4 = 5.0/6.0;
double src_y1 = 1.0/6.0, src_y2 = 2.0/6.0;
double src_y3 = 4.0/6.0, src_y4 = 5.0/6.0;
int sx1 = plot_x + static_cast<int>(src_x1 * plot_w);
int sx2 = plot_x + static_cast<int>(src_x2 * plot_w);
int sx3 = plot_x + static_cast<int>(src_x3 * plot_w);
int sx4 = plot_x + static_cast<int>(src_x4 * plot_w);
// Y flipped
int sy1 = plot_y + plot_h - static_cast<int>(src_y2 * plot_h);
int sy2 = plot_y + plot_h - static_cast<int>(src_y1 * plot_h);
int sy3 = plot_y + plot_h - static_cast<int>(src_y4 * plot_h);
int sy4 = plot_y + plot_h - static_cast<int>(src_y3 * plot_h);
// Draw dithered fill pattern for heat sources (yellow/orange dots)
SDL_SetRenderDrawColor(rend, 255, 200, 0, 255);
// Bottom-left source
for (int y = sy1; y < sy2; y += 4) {
for (int x = sx1; x < sx2; x += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Bottom-right source
for (int y = sy1; y < sy2; y += 4) {
for (int x = sx3; x < sx4; x += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Top-left source
for (int y = sy3; y < sy4; y += 4) {
for (int x = sx1; x < sx2; x += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Top-right source
for (int y = sy3; y < sy4; y += 4) {
for (int x = sx3; x < sx4; x += 4) {
SDL_RenderDrawPoint(rend, x, y);
}
}
// Draw thick orange borders around heat sources
SDL_SetRenderDrawColor(rend, 255, 150, 0, 255);
SDL_Rect src_bl = {sx1, sy1, sx2 - sx1, sy2 - sy1};
SDL_Rect src_br = {sx3, sy1, sx4 - sx3, sy2 - sy1};
SDL_Rect src_tl = {sx1, sy3, sx2 - sx1, sy4 - sy3};
SDL_Rect src_tr = {sx3, sy3, sx4 - sx3, sy4 - sy3};
// Double border for visibility
SDL_RenderDrawRect(rend, &src_bl);
SDL_RenderDrawRect(rend, &src_br);
SDL_RenderDrawRect(rend, &src_tl);
SDL_RenderDrawRect(rend, &src_tr);
SDL_Rect src_bl_in = {sx1+1, sy1+1, sx2-sx1-2, sy2-sy1-2};
SDL_Rect src_br_in = {sx3+1, sy1+1, sx4-sx3-2, sy2-sy1-2};
SDL_Rect src_tl_in = {sx1+1, sy3+1, sx2-sx1-2, sy4-sy3-2};
SDL_Rect src_tr_in = {sx3+1, sy3+1, sx4-sx3-2, sy4-sy3-2};
SDL_RenderDrawRect(rend, &src_bl_in);
SDL_RenderDrawRect(rend, &src_br_in);
SDL_RenderDrawRect(rend, &src_tl_in);
SDL_RenderDrawRect(rend, &src_tr_in);
// Find and draw min/max temperature markers
int min_i = 0, min_j = 0, max_i = 0, max_j = 0;
double min_temp = temps[0][0], max_temp = temps[0][0];
for (int j = 0; j < ny; j++) {
for (int i = 0; i < nx; i++) {
if (temps[j][i] < min_temp) { min_temp = temps[j][i]; min_i = i; min_j = j; }
if (temps[j][i] > max_temp) { max_temp = temps[j][i]; max_i = i; max_j = j; }
}
}
// Min marker (blue circle ring)
int minx = plot_x + (min_i * plot_w) / nx;
int miny = plot_y + plot_h - (min_j * plot_h) / ny; // Y flipped
SDL_SetRenderDrawColor(rend, 100, 150, 255, 255);
for (int dx = -4; dx <= 4; dx++) {
for (int dy = -4; dy <= 4; dy++) {
if (dx*dx + dy*dy <= 16 && dx*dx + dy*dy >= 4)
SDL_RenderDrawPoint(rend, minx + dx, miny + dy);
}
}
// Max marker (red circle ring)
int maxx = plot_x + (max_i * plot_w) / nx;
int maxy = plot_y + plot_h - (max_j * plot_h) / ny; // Y flipped
SDL_SetRenderDrawColor(rend, 255, 100, 100, 255);
for (int dx = -4; dx <= 4; dx++) {
for (int dy = -4; dy <= 4; dy++) {
if (dx*dx + dy*dy <= 16 && dx*dx + dy*dy >= 4)
SDL_RenderDrawPoint(rend, maxx + dx, maxy + dy);
}
}
// Progress bar
int bar_x = cell_x + cell_w - 65;
int bar_y = cell_y + cell_h - 18;
int bar_w = 55;
int bar_h = 8;
double progress = info.time / info.tmax;
SDL_SetRenderDrawColor(rend, 60, 60, 60, 255);
SDL_Rect bar_bg = {bar_x, bar_y, bar_w, bar_h};
SDL_RenderFillRect(rend, &bar_bg);
SDL_SetRenderDrawColor(rend, 80, 180, 80, 255);
SDL_Rect bar_fg = {bar_x, bar_y, static_cast<int>(bar_w * progress), bar_h};
SDL_RenderFillRect(rend, &bar_fg);
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
SDL_RenderDrawRect(rend, &bar_bg);
// Speed indicator
char speed_buf[16];
snprintf(speed_buf, sizeof(speed_buf), "X%d", info.speed);
SDL_SetRenderDrawColor(rend, 150, 200, 255, 255);
draw_text(rend, cell_x + cell_w - 130, cell_y + cell_h - 18, speed_buf);
// Paused indicator
if (info.paused) {
SDL_SetRenderDrawColor(rend, 255, 200, 50, 255);
draw_text(rend, cell_x + 5, cell_y + cell_h - 18, "PAUSED");
}
// Draw border
SDL_SetRenderDrawColor(rend, 100, 100, 100, 255);
SDL_Rect border = {plot_x, plot_y, plot_w, plot_h};
SDL_RenderDrawRect(rend, &border);
}
}SDL Application Controller Module
sdl_app.hpp
/**
* @file sdl_app.hpp
* @brief SDL2 application for heat equation visualization
*/
#ifndef SDL_APP_HPP
#define SDL_APP_HPP
#include "SDL.h"
#include "sdl_window.hpp"
#include "sdl_heatmap.hpp"
#include "material.hpp"
#include "heat_equation_solver.hpp"
#include <memory>
namespace sdl {
/**
* @class SDLApp
* @brief Heat simulation with fullscreen visualization
*
* Controls: SPACE=pause, R=reset, UP/DOWN=speed, ESC=quit
*/
class SDLApp {
public:
/**
* @brief Type of simulation
*/
enum class SimType {
BAR_1D, ///< 1D heat equation (bar)
PLATE_2D }; ///< 2D heat equation (plate)
private:
std::unique_ptr<SDLWindow> window_;
std::unique_ptr<SDLHeatmap> heatmap_;
std::unique_ptr<ensiie::HeatEquationSolver1D> solver_1d_;
std::unique_ptr<ensiie::HeatEquationSolver2D> solver_2d_;
SimType sim_type_; ///< Simulation type
ensiie::Material material_; ///< Selected material
double L_; ///< Domain size
double tmax_; ///< Maximum simulation time
double u0_; ///< Initial temperature
double f_; ///< Source intensity
int n_; ///< Grid resolution
bool paused_; ///< Pause state
int speed_; ///< Simulation speed
bool running_; ///< Application state
bool grid_mode_; ///< Multi-material grid mode
// For grid mode: 4 solvers (one per material)
std::unique_ptr<ensiie::HeatEquationSolver1D> solvers_1d_[4];
std::unique_ptr<ensiie::HeatEquationSolver2D> solvers_2d_[4];
ensiie::Material materials_[4];
void render();
void render_grid();
void process_events(SDL_Event& event);
void start_simulation();
void start_grid_simulation();
public:
/**
* @brief Create application for single material simulation
*/
SDLApp(
SimType type,
const ensiie::Material& mat,
double L,
double tmax,
double u0,
double f
);
/**
* @brief Create application in grid mode (all materials)
*/
SDLApp(
SimType type,
double L,
double tmax,
double u0,
double f
);
/**
* @brief Run the application main loop
*/
void run();
};
}
#endifsdl_app.cpp
/**
* @file sdl_app.cpp
* @brief SDL2 application implementation
*/
#include "sdl_app.hpp"
#include "sdl_core.hpp"
#include <algorithm>
namespace sdl {
// Single material constructor
SDLApp::SDLApp(
SimType type,
const ensiie::Material& mat,
double L,
double tmax,
double u0,
double f
)
: window_(std::make_unique<SDLWindow>("Heat Equation", 800, 600, false))
, heatmap_(std::make_unique<SDLHeatmap>(*window_, 280.0, 380.0))
, solver_1d_(nullptr)
, solver_2d_(nullptr)
, sim_type_(type)
, material_(mat)
, L_(L)
, tmax_(tmax)
, u0_(u0)
, f_(f)
, n_(1001)
, paused_(false)
, speed_(10)
, running_(true)
, grid_mode_(false)
{
start_simulation();
}
// Grid mode constructor (all 4 materials)
SDLApp::SDLApp(
SimType type,
double L,
double tmax,
double u0,
double f
)
: window_(nullptr)
, heatmap_(nullptr)
, solver_1d_(nullptr)
, solver_2d_(nullptr)
, sim_type_(type)
, material_(ensiie::Materials::COPPER)
, L_(L)
, tmax_(tmax)
, u0_(u0)
, f_(f)
, n_(1001)
, paused_(false)
, speed_(10)
, running_(true)
, grid_mode_(true)
{
// Use 0,0 to trigger maximized window mode
window_ = std::make_unique<SDLWindow>("Heat Equation - All Materials", 0, 0, false);
heatmap_ = std::make_unique<SDLHeatmap>(*window_, 280.0, 380.0);
// Initialize 4 materials
materials_[0] = ensiie::Materials::COPPER;
materials_[1] = ensiie::Materials::IRON;
materials_[2] = ensiie::Materials::GLASS;
materials_[3] = ensiie::Materials::POLYSTYRENE;
start_grid_simulation();
}
void SDLApp::start_simulation() {
paused_ = false;
if (sim_type_ == SimType::BAR_1D) {
n_ = 1001;
speed_ = 1;
solver_1d_ = std::make_unique<ensiie::HeatEquationSolver1D>(
material_, L_, tmax_, u0_, f_, n_
);
solver_2d_.reset();
} else {
n_ = 101;
speed_ = 1;
solver_2d_ = std::make_unique<ensiie::HeatEquationSolver2D>(
material_, L_, tmax_, u0_, f_, n_
);
solver_1d_.reset();
}
}
void SDLApp::start_grid_simulation() {
paused_ = false;
if (sim_type_ == SimType::BAR_1D) {
n_ = 1001;
speed_ = 1;
for (int i = 0; i < 4; i++) {
solvers_1d_[i] = std::make_unique<ensiie::HeatEquationSolver1D>(
materials_[i], L_, tmax_, u0_, f_, n_
);
solvers_2d_[i].reset();
}
} else {
n_ = 101;
speed_ = 1;
for (int i = 0; i < 4; i++) {
solvers_2d_[i] = std::make_unique<ensiie::HeatEquationSolver2D>(
materials_[i], L_, tmax_, u0_, f_, n_
);
solvers_1d_[i].reset();
}
}
}
void SDLApp::render() {
window_->clear(0, 0, 0);
SimInfo info;
info.material_name = material_.name;
info.alpha = material_.alpha();
info.L = L_;
info.tmax = tmax_;
info.u0 = u0_ + 273.15;
info.speed = speed_;
info.paused = paused_;
if (sim_type_ == SimType::BAR_1D && solver_1d_) {
info.time = solver_1d_->get_time();
auto temps = solver_1d_->get_temperature();
if (!temps.empty()) {
heatmap_->auto_range(temps);
heatmap_->draw_1d_fullscreen(temps, info);
}
} else if (sim_type_ == SimType::PLATE_2D && solver_2d_) {
info.time = solver_2d_->get_time();
auto temps = solver_2d_->get_temperature_2d();
if (!temps.empty() && !temps[0].empty()) {
heatmap_->auto_range_2d(temps);
heatmap_->draw_2d_fullscreen(temps, info);
}
}
window_->present();
}
void SDLApp::render_grid() {
window_->clear(0, 0, 0);
int win_w = window_->get_width();
int win_h = window_->get_height();
int cell_w = win_w / 2;
int cell_h = win_h / 2;
// Grid positions: [0]=top-left, [1]=top-right, [2]=bottom-left, [3]=bottom-right
int cell_x[4] = {0, cell_w, 0, cell_w};
int cell_y[4] = {0, 0, cell_h, cell_h};
// Reference temperature for ΔT calculation
double u0_kelvin = u0_ + 273.15;
// Find global min/max ΔT (temperature increase from u0)
double global_min = 0.0; // ΔT minimum is 0 (no heating)
double global_max = 0.0;
if (sim_type_ == SimType::BAR_1D) {
for (int i = 0; i < 4; i++) {
if (solvers_1d_[i]) {
auto temps = solvers_1d_[i]->get_temperature();
for (double t : temps) {
double delta_t = t - u0_kelvin;
global_max = std::max(global_max, delta_t);
}
}
}
} else {
for (int i = 0; i < 4; i++) {
if (solvers_2d_[i]) {
auto temps = solvers_2d_[i]->get_temperature_2d();
for (const auto& row : temps) {
for (double t : row) {
double delta_t = t - u0_kelvin;
global_max = std::max(global_max, delta_t);
}
}
}
}
}
// Set range for ΔT: 0 to max with small margin
double margin = global_max * 0.05;
if (global_max < 0.1) global_max = 1.0; // Minimum range for visibility
heatmap_->set_range(global_min, global_max + margin);
// Render each material in its cell
for (int i = 0; i < 4; i++) {
SimInfo info;
info.material_name = materials_[i].name;
info.alpha = materials_[i].alpha();
info.L = L_;
info.tmax = tmax_;
info.u0 = u0_kelvin;
info.speed = speed_;
info.paused = paused_;
if (sim_type_ == SimType::BAR_1D && solvers_1d_[i]) {
info.time = solvers_1d_[i]->get_time();
auto temps = solvers_1d_[i]->get_temperature();
if (!temps.empty()) {
// Convert to ΔT
std::vector<double> delta_temps(temps.size());
for (size_t j = 0; j < temps.size(); j++) {
delta_temps[j] = temps[j] - u0_kelvin;
}
heatmap_->draw_1d_cell(delta_temps, info, cell_x[i], cell_y[i], cell_w, cell_h);
}
} else if (sim_type_ == SimType::PLATE_2D && solvers_2d_[i]) {
info.time = solvers_2d_[i]->get_time();
auto temps = solvers_2d_[i]->get_temperature_2d();
if (!temps.empty() && !temps[0].empty()) {
// Convert to ΔT
std::vector<std::vector<double>> delta_temps(temps.size());
for (size_t j = 0; j < temps.size(); j++) {
delta_temps[j].resize(temps[j].size());
for (size_t k = 0; k < temps[j].size(); k++) {
delta_temps[j][k] = temps[j][k] - u0_kelvin;
}
}
heatmap_->draw_2d_cell(delta_temps, info, cell_x[i], cell_y[i], cell_w, cell_h);
}
}
}
// Draw grid separators
SDL_Renderer* rend = window_->get_renderer();
SDL_SetRenderDrawColor(rend, 255, 255, 255, 255);
// Vertical separator (3 pixels wide)
for (int dx = -1; dx <= 1; dx++) {
SDL_RenderDrawLine(rend, cell_w + dx, 0, cell_w + dx, win_h);
}
// Horizontal separator (3 pixels wide)
for (int dy = -1; dy <= 1; dy++) {
SDL_RenderDrawLine(rend, 0, cell_h + dy, win_w, cell_h + dy);
}
// Add corner markers
SDL_SetRenderDrawColor(rend, 200, 200, 200, 255);
int corner_size = 10;
// Center cross highlight
SDL_RenderDrawLine(rend, cell_w - corner_size, cell_h, cell_w + corner_size, cell_h);
SDL_RenderDrawLine(rend, cell_w, cell_h - corner_size, cell_w, cell_h + corner_size);
window_->present();
}
void SDLApp::process_events(SDL_Event& event) {
if (event.type == SDL_KEYDOWN) {
switch (event.key.keysym.sym) {
case SDLK_ESCAPE:
running_ = false;
break;
case SDLK_SPACE:
paused_ = !paused_;
break;
case SDLK_r:
if (grid_mode_) {
for (int i = 0; i < 4; i++) {
if (solvers_1d_[i]) solvers_1d_[i]->reset();
if (solvers_2d_[i]) solvers_2d_[i]->reset();
}
} else {
if (solver_1d_) solver_1d_->reset();
if (solver_2d_) solver_2d_->reset();
}
paused_ = false;
break;
case SDLK_UP:
speed_ = std::min(sim_type_ == SimType::BAR_1D ? 50 : 20, speed_ + 5);
break;
case SDLK_DOWN:
speed_ = std::max(1, speed_ - 5);
break;
}
}
}
void SDLApp::run() {
while (running_) {
SDL_Event event;
while (SDL_PollEvent(&event)) {
if (event.type == SDL_QUIT ||
(event.type == SDL_WINDOWEVENT &&
event.window.event == SDL_WINDOWEVENT_CLOSE)) {
running_ = false;
}
process_events(event);
}
if (!running_) break;
if (!paused_) {
for (int s = 0; s < speed_; s++) {
if (grid_mode_) {
bool all_done = true;
for (int i = 0; i < 4; i++) {
if (sim_type_ == SimType::BAR_1D && solvers_1d_[i]) {
if (solvers_1d_[i]->step()) all_done = false;
} else if (sim_type_ == SimType::PLATE_2D && solvers_2d_[i]) {
if (solvers_2d_[i]->step()) all_done = false;
}
}
if (all_done) {
paused_ = true;
break;
}
} else {
if (sim_type_ == SimType::BAR_1D && solver_1d_) {
if (!solver_1d_->step()) {
paused_ = true;
break;
}
} else if (sim_type_ == SimType::PLATE_2D && solver_2d_) {
if (!solver_2d_->step()) {
paused_ = true;
break;
}
}
}
}
}
if (grid_mode_) {
render_grid();
} else {
render();
}
SDLCore::delay(16);
}
heatmap_.reset();
window_.reset();
}
}Main program
main.cpp
/**
* @file main.cpp
* @brief Console menu and SDL2 visualization launcher
*/
#include "sdl_core.hpp"
#include "sdl_app.hpp"
#include "material.hpp"
#include <iostream>
#include <string>
#include <limits>
#include <iomanip>
void clear_input() {
std::cin.clear();
std::cin.ignore(std::numeric_limits<std::streamsize>::max(), '\n');
}
void print_header() {
std::cout << "\n";
std::cout << "========================================\n";
std::cout << " HEAT EQUATION SIMULATOR\n";
std::cout << " ENSIIE - Master 1\n";
std::cout << "========================================\n\n";
}
int select_simulation_type() {
std::cout << "SELECT SIMULATION TYPE\n";
std::cout << "----------------------\n";
std::cout << " 1. 1D Bar (All 4 Materials - 2x2 Grid)\n";
std::cout << " 2. 2D Plate (All 4 Materials - 2x2 Grid)\n";
std::cout << " 0. Quit\n";
std::cout << "Choice: ";
int choice;
if (!(std::cin >> choice)) {
clear_input();
return -1;
}
return choice;
}
bool get_parameters(double& L, double& tmax, double& u0, double& f) {
std::cout << "\nPARAMETERS (Enter for default, 'b' to go back)\n";
std::cout << "----------------------------------------------\n";
std::string input;
clear_input();
std::cout << "Domain length L [1.0] m: ";
std::getline(std::cin, input);
if (input == "b" || input == "B") return false;
if (!input.empty()) {
try { L = std::stod(input); } catch (...) { L = 1.0; }
}
std::cout << "Max time tmax [16.0] s: ";
std::getline(std::cin, input);
if (input == "b" || input == "B") return false;
if (!input.empty()) {
try { tmax = std::stod(input); } catch (...) { tmax = 16.0; }
}
std::cout << "Initial temp u0 [13.0] C: ";
std::getline(std::cin, input);
if (input == "b" || input == "B") return false;
if (!input.empty()) {
try { u0 = std::stod(input); } catch (...) { u0 = 13.0; }
}
std::cout << "Source amplitude f [80.0] C: ";
std::getline(std::cin, input);
if (input == "b" || input == "B") return false;
if (!input.empty()) {
try { f = std::stod(input); } catch (...) { f = 80.0; }
}
return true;
}
bool confirm_and_start_grid(int sim_type, double L, double tmax, double u0, double f) {
const char* sim_names[] = {"1D Bar", "2D Plate"};
std::cout << "\nCONFIGURATION (2x2 Grid - All Materials)\n";
std::cout << "----------------------------------------\n";
std::cout << " Type: " << sim_names[sim_type - 1] << "\n";
std::cout << " Materials: Copper, Iron, Glass, Polystyrene\n";
std::cout << " L=" << L << " m, tmax=" << tmax << " s\n";
std::cout << " u0=" << u0 << " C, f=" << f << " C\n\n";
std::cout << "Controls: SPACE=pause, R=reset, UP/DOWN=speed, ESC=quit\n\n";
std::cout << "[S]tart [B]ack [Q]uit: ";
char choice;
std::cin >> choice;
return (std::tolower(choice) == 's');
}
int main() {
bool running = true;
while (running) {
print_header();
int sim_type = select_simulation_type();
if (sim_type == 0) {
std::cout << "\nExit.\n";
break;
}
if (sim_type < 1 || sim_type > 2) {
std::cout << "\nInvalid choice.\n";
continue;
}
double L = 1.0, tmax = 16.0, u0 = 13.0, f = 80.0;
// Grid mode (all 4 materials)
if (!get_parameters(L, tmax, u0, f)) continue;
if (!confirm_and_start_grid(sim_type, L, tmax, u0, f)) continue;
std::cout << "\nStarting grid simulation...\n";
try {
sdl::SDLCore::init();
sdl::SDLApp::SimType type = (sim_type == 1)
? sdl::SDLApp::SimType::BAR_1D
: sdl::SDLApp::SimType::PLATE_2D;
sdl::SDLApp app(type, L, tmax, u0, f); // Grid mode constructor
app.run();
sdl::SDLCore::quit();
std::cout << "\nReturning to menu...\n";
} catch (const std::exception& e) {
std::cerr << "Error: " << e.what() << std::endl;
sdl::SDLCore::quit();
}
}
return 0;
}Documentation config
Doxyfile
# Doxyfile 1.9.0 - Configuration file for Doxygen
#
# Heat Equation Simulator Documentation
# ENSIIE - Master 1 - Programmation Avancee
#
#---------------------------------------------------------------------------
# Project related configuration options
#---------------------------------------------------------------------------
PROJECT_NAME = "Heat Equation Simulator"
PROJECT_NUMBER = "1.0"
PROJECT_BRIEF = "1D and 2D Heat Equation Solver using Implicit Finite Differences with SDL2 Visualization"
PROJECT_LOGO =
OUTPUT_DIRECTORY = doc
CREATE_SUBDIRS = NO
OUTPUT_LANGUAGE = English
#---------------------------------------------------------------------------
# Build related configuration options
#---------------------------------------------------------------------------
EXTRACT_ALL = YES
EXTRACT_PRIVATE = YES
EXTRACT_STATIC = YES
EXTRACT_LOCAL_CLASSES = YES
HIDE_UNDOC_MEMBERS = NO
HIDE_UNDOC_CLASSES = NO
BRIEF_MEMBER_DESC = YES
REPEAT_BRIEF = YES
#---------------------------------------------------------------------------
# Input configuration
#---------------------------------------------------------------------------
INPUT = .
INPUT_ENCODING = UTF-8
FILE_PATTERNS = *.cpp *.hpp *.h
RECURSIVE = NO
EXCLUDE =
EXCLUDE_PATTERNS =
#---------------------------------------------------------------------------
# Source browsing options
#---------------------------------------------------------------------------
SOURCE_BROWSER = YES
INLINE_SOURCES = NO
STRIP_CODE_COMMENTS = NO
REFERENCED_BY_RELATION = YES
REFERENCES_RELATION = YES
#---------------------------------------------------------------------------
# Alphabetical index options
#---------------------------------------------------------------------------
ALPHABETICAL_INDEX = YES
#---------------------------------------------------------------------------
# HTML output options
#---------------------------------------------------------------------------
GENERATE_HTML = YES
HTML_OUTPUT = html
HTML_FILE_EXTENSION = .html
HTML_COLORSTYLE_HUE = 220
HTML_COLORSTYLE_SAT = 100
HTML_COLORSTYLE_GAMMA = 80
HTML_DYNAMIC_SECTIONS = YES
GENERATE_TREEVIEW = YES
TREEVIEW_WIDTH = 250
#---------------------------------------------------------------------------
# LaTeX output options
#---------------------------------------------------------------------------
GENERATE_LATEX = NO
#---------------------------------------------------------------------------
# Configuration for formulas
#---------------------------------------------------------------------------
USE_MATHJAX = YES
MATHJAX_FORMAT = HTML-CSS
MATHJAX_RELPATH = https://cdn.jsdelivr.net/npm/mathjax@3/es5/
#---------------------------------------------------------------------------
# Preprocessor options
#---------------------------------------------------------------------------
ENABLE_PREPROCESSING = YES
MACRO_EXPANSION = NO
EXPAND_ONLY_PREDEF = NO
#---------------------------------------------------------------------------
# Diagram options
#---------------------------------------------------------------------------
HAVE_DOT = YES
DOT_IMAGE_FORMAT = svg
DOT_TRANSPARENT = YES
DOT_GRAPH_MAX_NODES = 100
UML_LOOK = YES
CLASS_GRAPH = YES
COLLABORATION_GRAPH = YES
INCLUDE_GRAPH = YES
INCLUDED_BY_GRAPH = YES
CALL_GRAPH = YES
CALLER_GRAPH = YES
#---------------------------------------------------------------------------
# Warnings
#---------------------------------------------------------------------------
QUIET = NO
WARNINGS = YES
WARN_IF_UNDOCUMENTED = YES
WARN_IF_DOC_ERROR = YES
WARN_NO_PARAMDOC = NO
#---------------------------------------------------------------------------
# Main page content
#---------------------------------------------------------------------------
USE_MDFILE_AS_MAINPAGE =Simulation Results
1D Simulations
- Copper: Rapid diffusion with wide and smooth temperature profiles
- Iron: Moderate diffusion with more pronounced gradients
- Glass: Limited diffusion with sharp, localized peaks
- Polystyrene: Negligible diffusion; heat remains confined near the sources
2D Simulations
- Copper: Large thermal halos with efficient radial heat propagation
- Iron: Moderate spreading with smoothly rounded isotherms
- Glass: Highly localized heat distribution with sharp boundaries
- Polystyrene: Maximum thermal insulation with minimal heat propagation
Algorithm Complexity
| Case | Method | Complexity | Speedup |
|---|---|---|---|
| 1D | Thomas Algorithm | O(n) | 1000× vs O(n³) |
| 2D | Gauss-Seidel | O(kn²) | 1,000,000× vs O(n⁶) |
References
Numerical Methods
- Tridiagonal Matrix Algorithm (Wikipedia)
- Gauss-Seidel Method (Wikipedia)
- Finite Difference Method (Wikipedia)
